Teledyne ISCO 6712 + Consibio Logger

EJ
Updated

Teledyne ISCO 6712 is a water sampler / measurement station, that can be used to sample bodies of water. In general, water samplers / measurement stations offer several benefits:

  • Quality Monitoring: They allow for regular collection of water samples, facilitating monitoring of pollutants and contaminants in stormwater runoff.
  • Data Accuracy: By collecting representative samples over time, water samplers provide accurate data for assessing water quality and compliance with regulations.
  • Early Detection of Pollution: Sampling helps in early detection of pollution sources or events, enabling prompt corrective actions to protect water resources.

Wiring of Sensor and Logger

Items needed

Connecting a Teledyne ISCO 6712 Measurement Station via. Solid State Relay

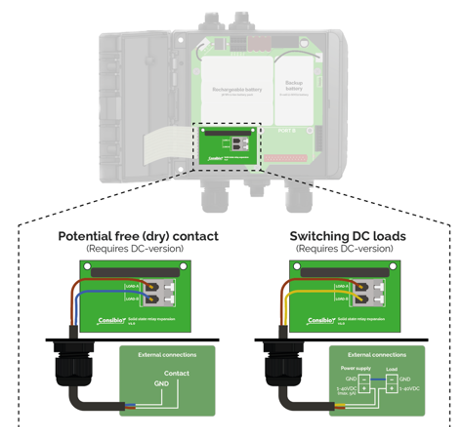

To wire the automatic sample collector, a 2-core cable needs to be pulled from the collector, through one of the two cable glands in the Logger, and connected to the SSR expansion, as indicated in the image. It doesn't matter whether the expansion is in Port A or Port B.

  1. Open the Logger
  2. Check if the SSR expansion is mounted in either Port A or Port B
  3. Pull a 2-core cable from the automatic sample collector through the cable gland
  4. Insert the contact wire into Load A and the ground wire into Load B on the terminal block on the SSR expansion.
  5. Tighten the cable gland around the cable to prevent it from coming loose.
  6. Close the Logger.

This configuration leverages the Logger's compatibility with Solid State Relay signals and the versatility of its SSR Expansion Board, enabling seamless integration with industry-standard control outputs for efficient control and monitoring.

Consibio Cloud Configuration Checklist

Follow the checklist to setup the cloud configuration if you are new to Consibio Cloud:

  • Claim Device Into Project
  • Add Sensor Channel (4-20 mA)
  • Configure Max. Offline and Measurement Interval
  • Setup Dashboard



✅ Claim Device Into Project



✅ Add Sensor Channel (w. 4-20 mA signal example)

✅ Configure Max. Offline and Measurement Interval

✅ Setup Dashboard



Disclaimer

When performing sensor-electrical wiring, always read and follow the sensor manufacturers latest instructions and safety guidelines. This guide is a suggestion based on the available information at the date of writing this guide.
