Oxyguard Model 420 DO is a submersible, oxygen and temperature sensor, that can be used to measure the dissolved oxygen and temperature in aquaculture and wastewater applications.

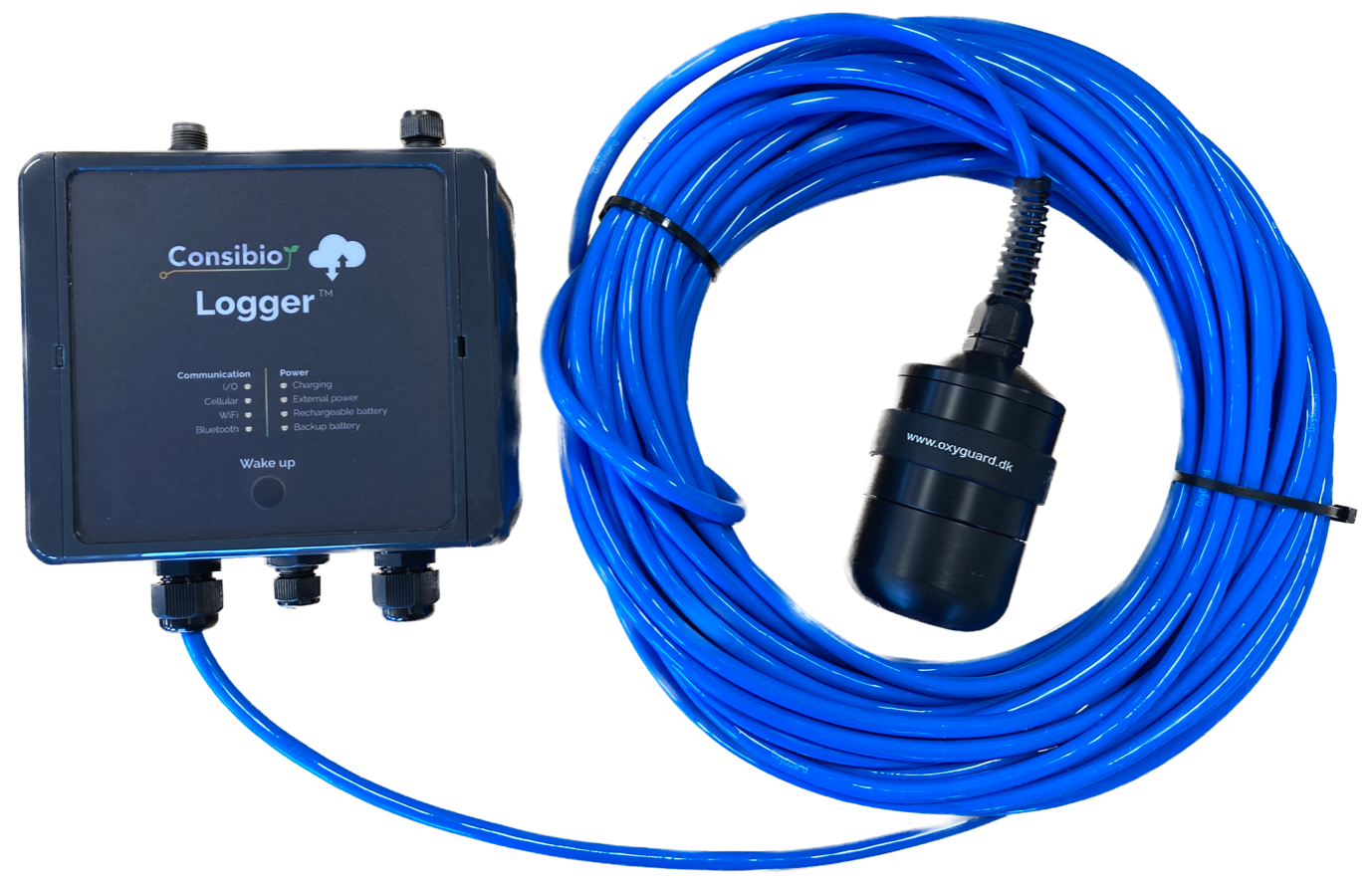

Together with the Consibio Logger, you can measure dissolved oxygen and temperature in real-time to provide valuable insights for:
- Real-time Monitoring: Provides real-time data on dissolved oxygen levels and temperature, enabling timely adjustments to aeration and water circulation to maintain optimal conditions.
- Improved Efficiency: Optimizes feed conversion and growth rates by maintaining optimal oxygen levels, leading to better overall productivity and profitability in aquaculture operations.
- Early Detection of Issues: Facilitates early detection of oxygen depletion events or temperature fluctuations, allowing for prompt corrective actions to prevent adverse effects on aquatic health and production.
Wiring of Sensor and Logger
Items needed
- 1 x Logger
- 1 x 4-20 mA v2.1 Expansion Board
- 1 x Oxyguard Model 420 DO
Connecting a Oxyguard Model 420 DO w. temp sensor via. 4-20 mA

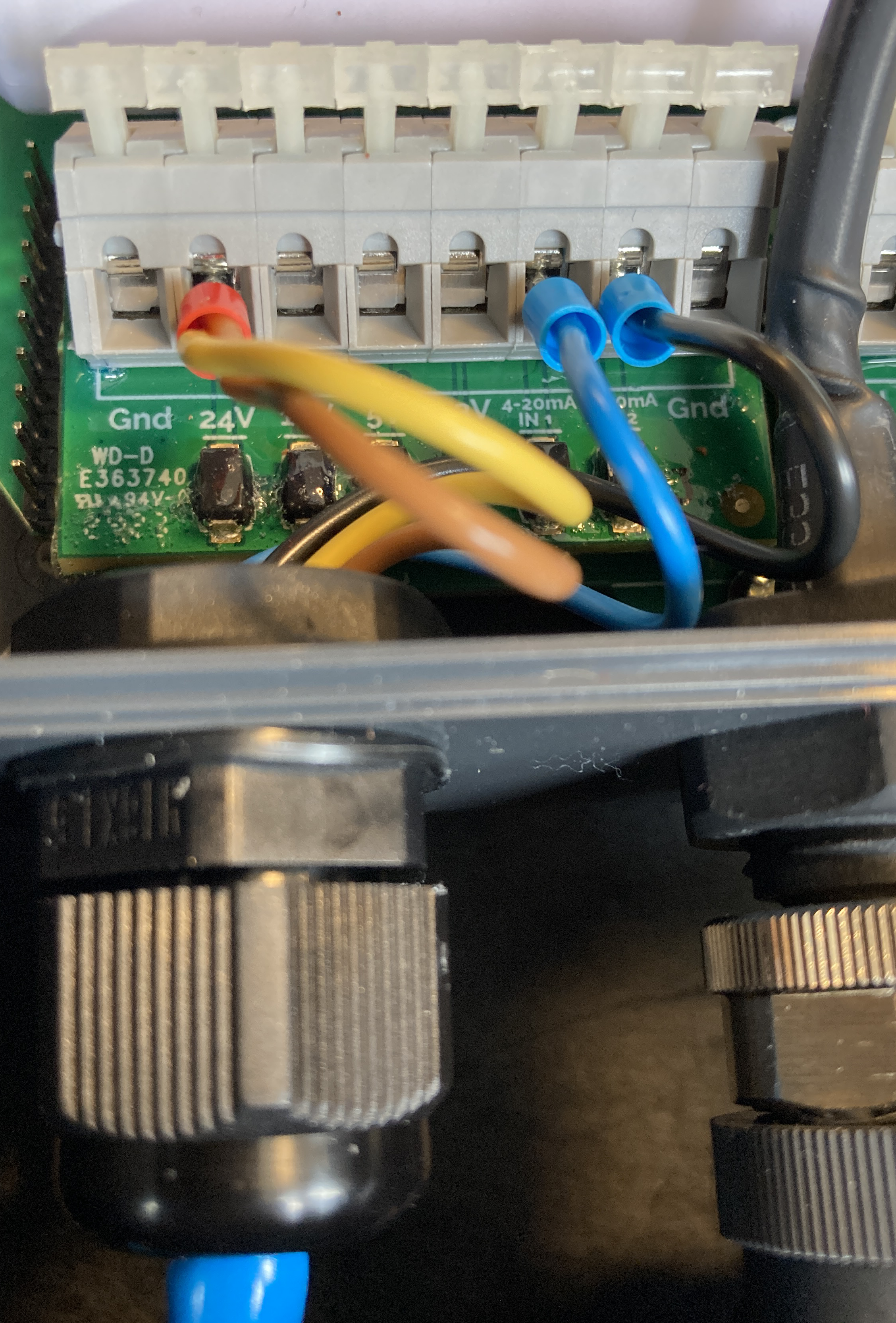

To integrate the Oxyguard Model 420 DO with the Consibio Logger via 4-20 mA, utilize the 4-20 mA Expansion Board and follow these connections:
- Brown and Yellow wire to 24V
- Blue wire to 4-20 mA IN1
- Black wire to 4-20 mA IN2
This configuration leverages the Logger's compatibility with the 4-20 mA protocol and the versatility of its 4-20 mA Expansion Board, enabling seamless integration with industry-standard communication protocols for efficient data acquisition and monitoring.
Consibio Cloud Configuration Checklist
Follow the checklist to setup the cloud configuration if you are new to Consibio Cloud:
- Claim Device Into Project
- Add Sensor Channel (4-20 mA)
- Configure Max. Offline and Measurement Interval
- Setup Dashboard
✅ Claim Device Into Project
✅ Add Sensor Channel (w. 4-20 mA signal example)
✅ Configure Max. Offline and Measurement Interval
✅ Setup Dashboard
Disclaimer
When performing sensor-electrical wiring, always read and follow the sensor manufacturers latest instructions and safety guidelines. This guide is a suggestion based on the available information at the date of writing this guide.
