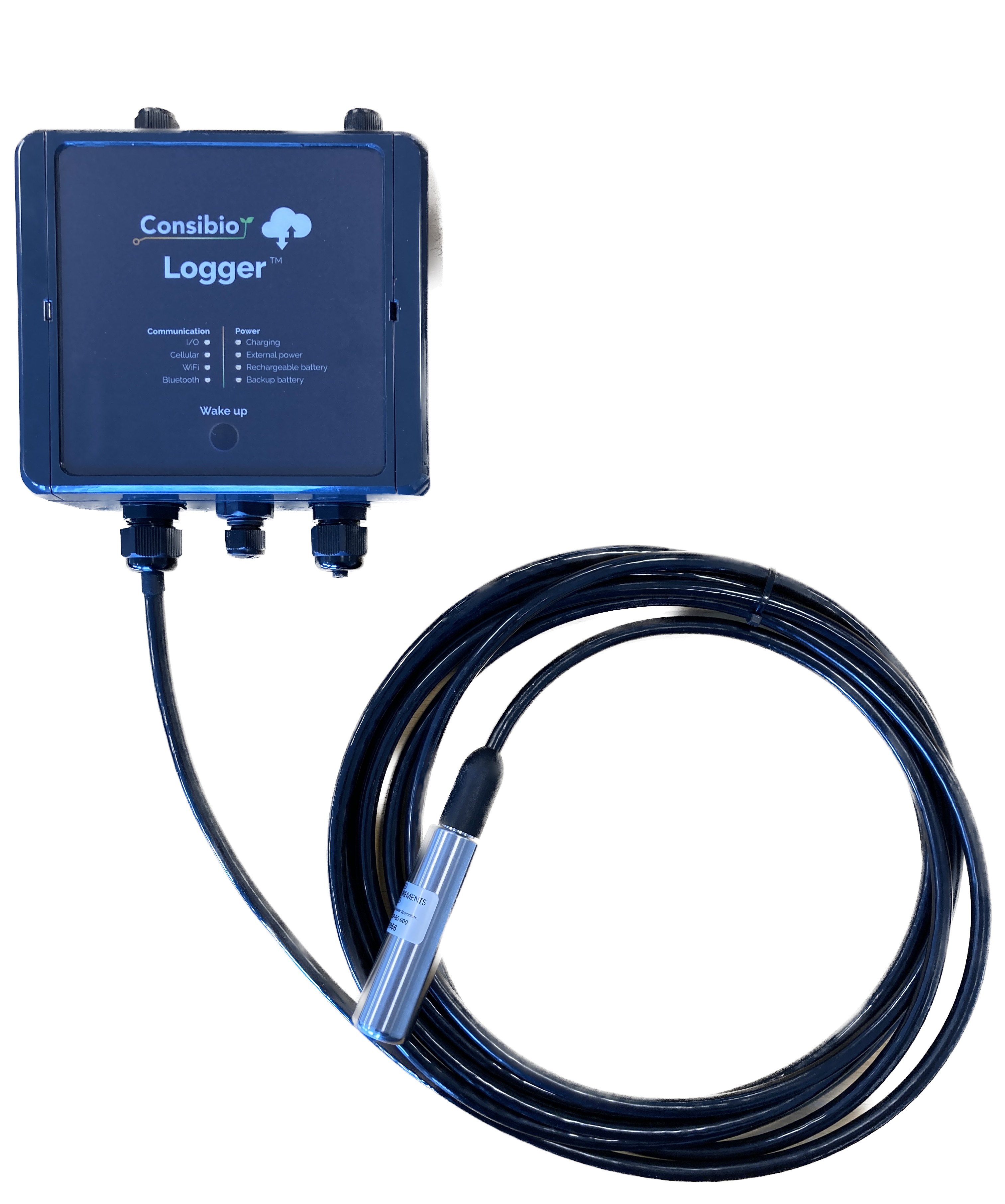

Applied Measurements Ta993 is a submersible temperature sensor, that can be used to measure the temperature in wastewater and groundwater applications.
Together with the Consibio Logger, you can measure temperature in real-time to provide valuable insights for:
- Monitoring Environmental Health: Temperature variations can indicate changes in groundwater flow, pollution levels, or environmental stress.
- Assessing Hydrological Conditions: Temperature data aids in understanding groundwater recharge rates, flow paths, and aquifer characteristics.
- Detecting Contamination: Anomalies in temperature can signal potential contamination sources or infiltration of surface pollutants.
Wiring of Sensor and Logger
Items needed
Connecting a Applied Measurements Ta993 sensor via. 4-20 mA

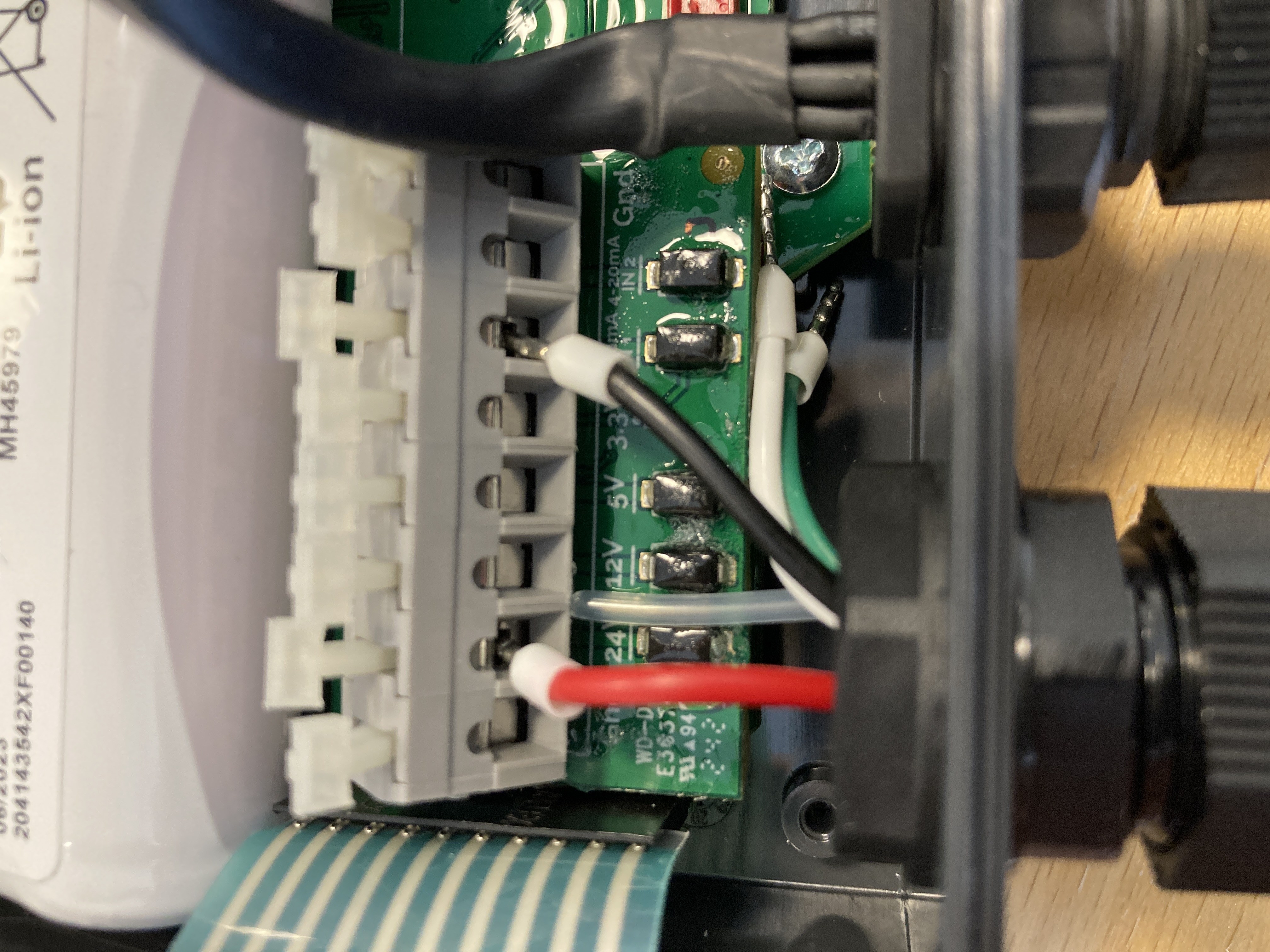

To integrate the Applied Measurements Ta993 sensor with the Consibio Logger via 4-20 mA, utilize the 4-20 mA Expansion Board and follow these connections:
- Red wire to 24V
- Black wire to 4-20 mA IN1
This configuration leverages the Logger's compatibility with the 4-20 mA protocol and the versatility of its 4-20 mA Expansion Board, enabling seamless integration with industry-standard communication protocols for efficient data acquisition and monitoring.
Consibio Cloud Configuration Checklist
Follow the checklist to setup the cloud configuration if you are new to Consibio Cloud:
- Claim Device Into Project
- Add Sensor Channel (4-20 mA)
- Configure Max. Offline and Measurement Interval
- Setup Dashboard
✅ Claim Device Into Project
✅ Add Sensor Channel (w. 4-20 mA signal example)
✅ Configure Max. Offline and Measurement Interval
✅ Setup Dashboard
Disclaimer
When performing sensor-electrical wiring, always read and follow the sensor manufacturers latest instructions and safety guidelines. This guide is a suggestion based on the available information at the date of writing this guide.
