MJK Expert 7060 is a hydrostatic level transmitter, that can be used to measure the water level in wastewater, drinking water and groundwater applications.
Together with the Consibio Logger, you can measure water level (pressure) in real-time to provide valuable insights for:
- Monitoring Groundwater Health: Detects changes in water levels and pressures, aiding in the early detection of contamination, saltwater intrusion, or over-pumping.
- Assessing Water Availability: Provides crucial data for assessing water availability, especially in drought-prone areas, guiding water allocation and usage decisions.
- Ensuring Drinking Water Quality: Monitoring water levels ensures consistent access to clean drinking water by preventing well depletion or contamination events.
Wiring of Sensor and Logger
Items needed
- 1 x Logger
- 1 x 4-20 mA Expansion Board v2.1
- 1 x MJK Expert 7060 Sensor
Connecting a MJK Expert 7060 sensor via. 4-20 mA

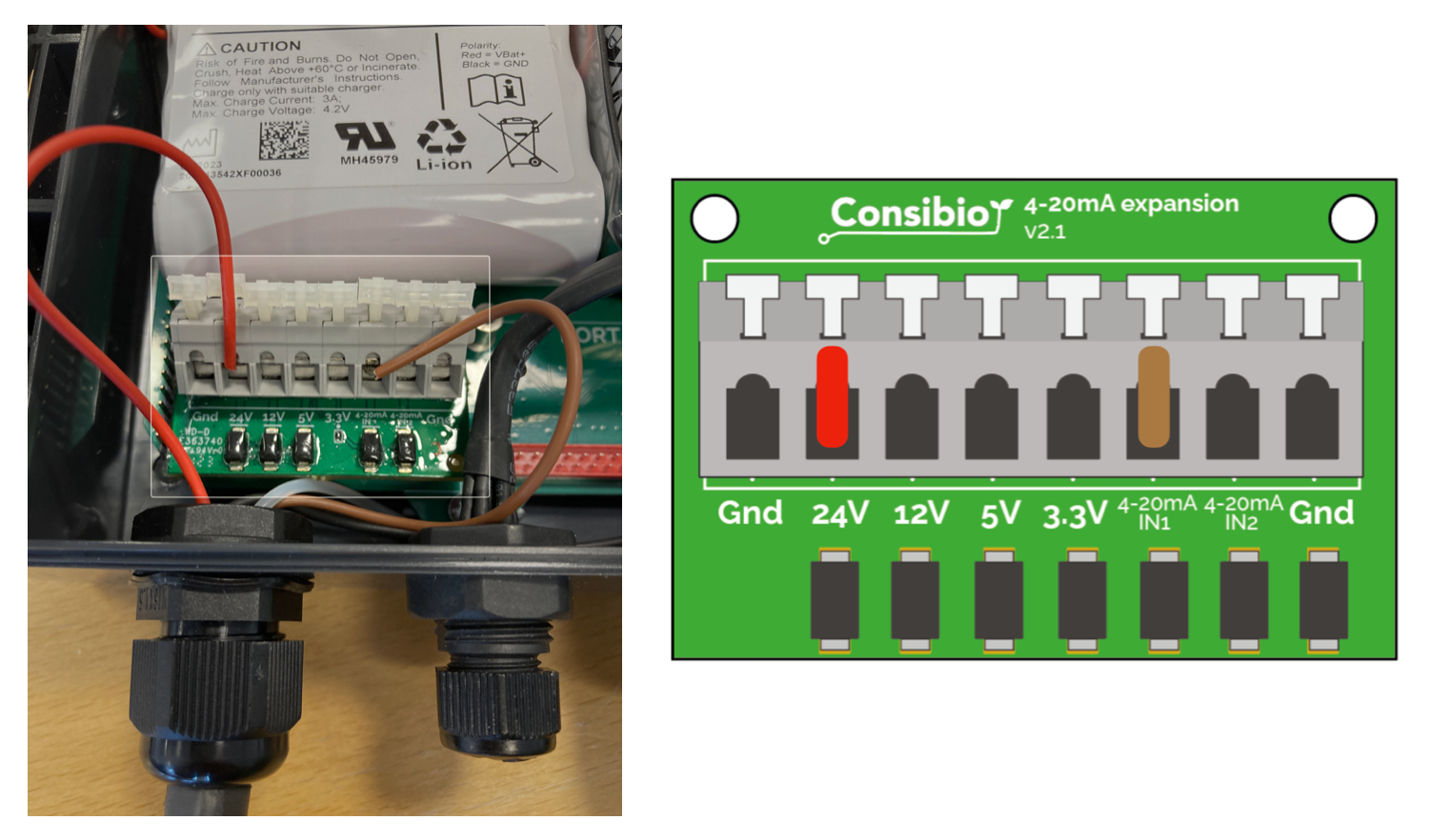

To integrate the MJK Expert 7060 sensor with the Consibio Logger via 4-20 mA, utilize the 4-20 mA Expansion Board and follow these connections:
- Red wire to 24V
- Brown wire to 4-20 mA IN1
This configuration leverages the Logger's compatibility with the 4-20 mA protocol and the versatility of its 4-20 mA Expansion Board, enabling seamless integration with industry-standard communication protocols for efficient data acquisition and monitoring.
Consibio Cloud Configuration Checklist
Follow the checklist to setup the cloud configuration if you are new to Consibio Cloud:
- Claim Device Into Project
- Add Sensor Channel w. 4-20 mA signal
- Configure Max. Offline and Measurement Interval
- Setup Dashboard
✅ Claim Device Into Project
✅ Add Sensor Channel w. 4-20 mA signal
✅ Configure Max. Offline and Measurement Interval
✅ Setup Dashboard
Disclaimer
When performing sensor-electrical wiring, always read and follow the sensor manufacturers latest instructions and safety guidelines. This guide is a suggestion based on the available information at the date of writing this guide.
