If you want to charge the batteries inside your equipment, this is the guide to follow.
Charging the Logger with or without the Rugged Case

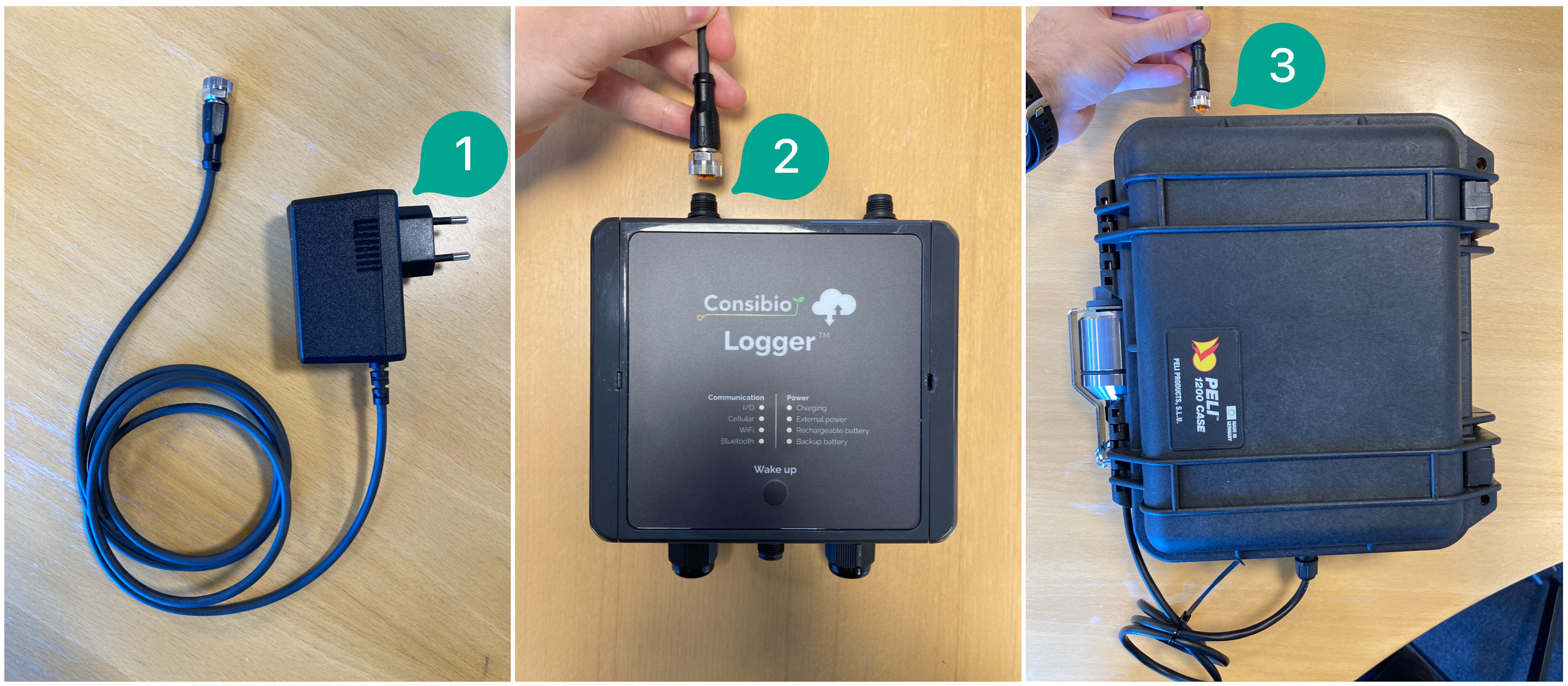

Start powering your Consibio equipment with the 230V AC power supply. (1)
- Connect the 230V AC to a power outlet
- Consibio Logger: Connect the 5-pole M12 connector to the top left side of the Logger
- Rugged Case: Connect the 5-pole M12 connector to the top left side
This will automatically charge the batteries in the Consibio Logger. Depending on the load of external sensors, the Logger will typically charge a fully depleted rechargeable battery within 8-12 hours.

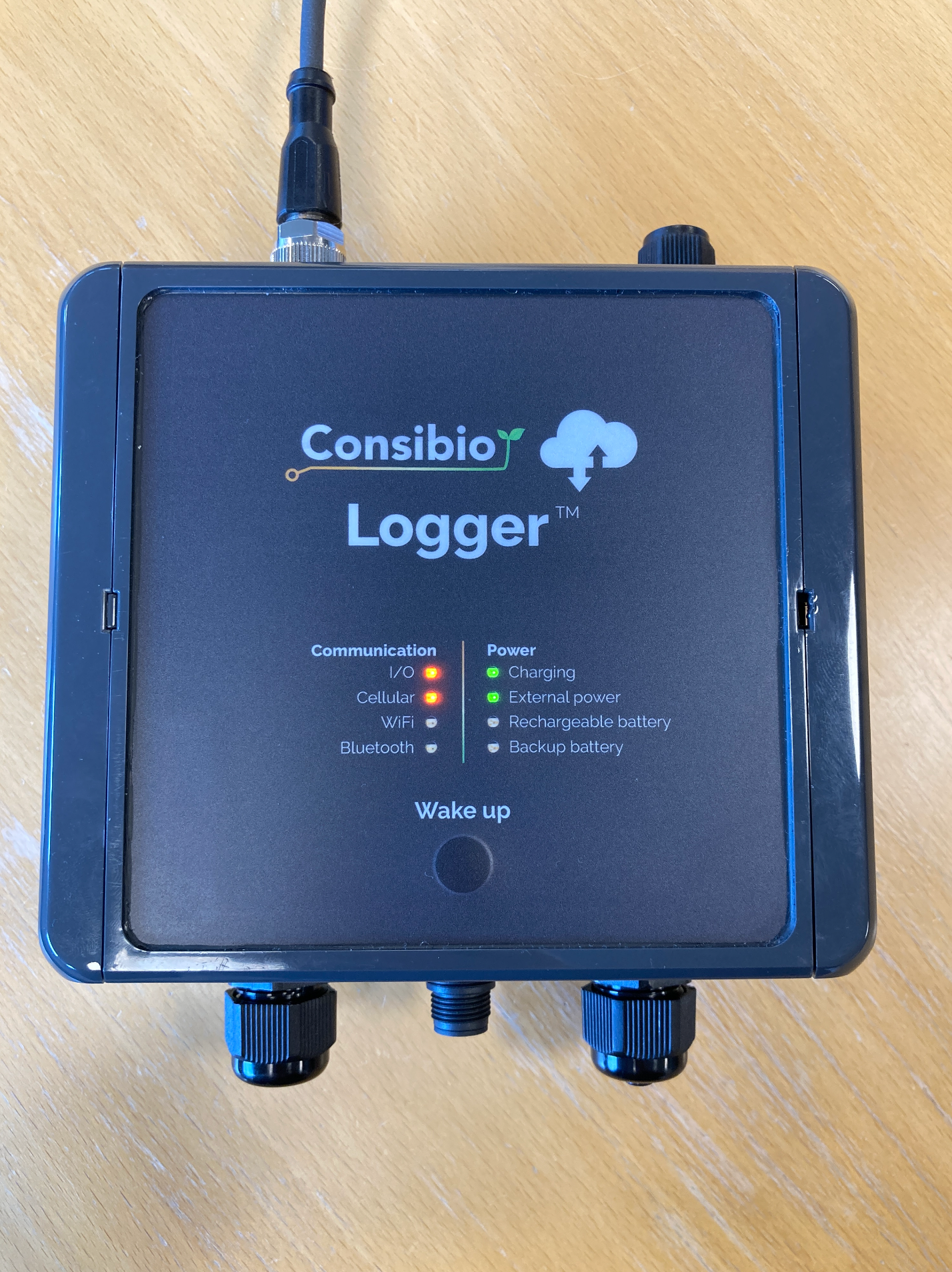

The charging icon on the Logger frontpanel (see image below) will indicate whether the device is successfully charging.
Important Notice
Please note that Consibio recommends using the power supply that came with the equipment to recharge the batteries.
