Consibio Logger v3 is designed with a very robust, water and weatherproof enclosure that is intended for usage in harsh environments for several years.
However, it's at the same time very easy to handle and up for maintenance for eg. changing the backup battery or setting up a new expansion board due to its hinged lid design.
Follow the steps below to open the lid:

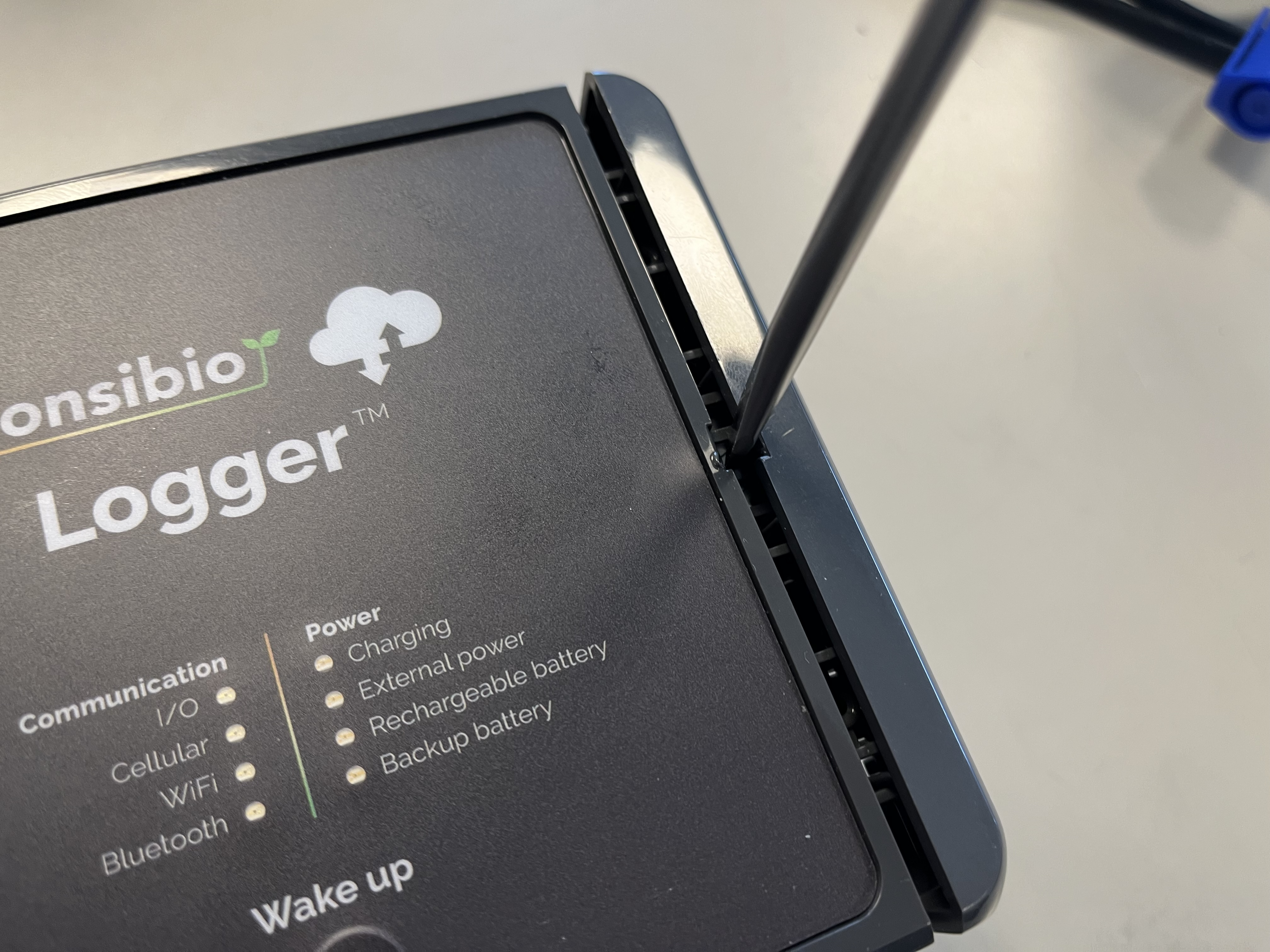

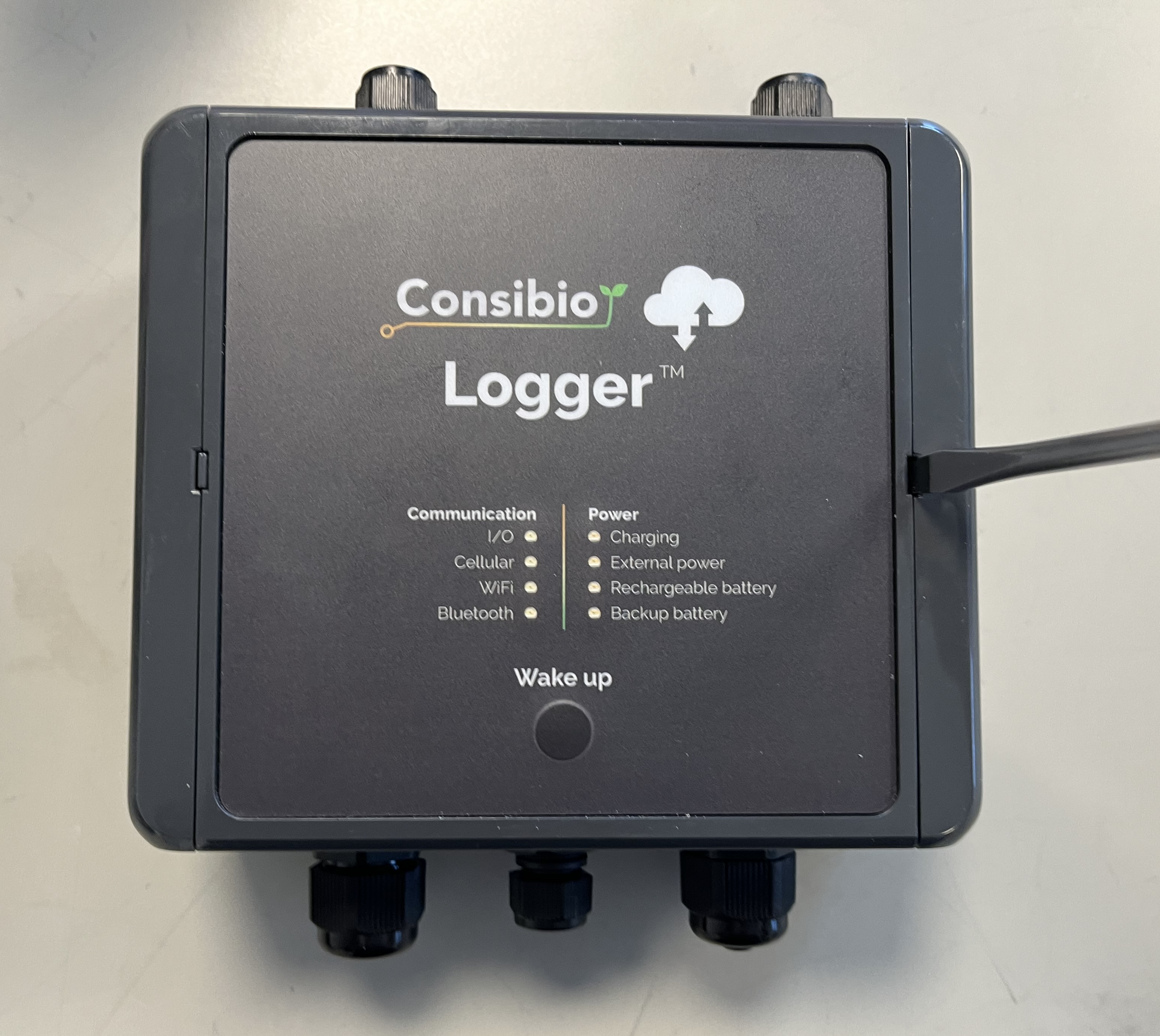

- Take a flat-head screwdriver and insert it gently in the small indentation on the right side. There is a similar indentation on the left side, but this is plugged, so it's not possible to insert a tool.

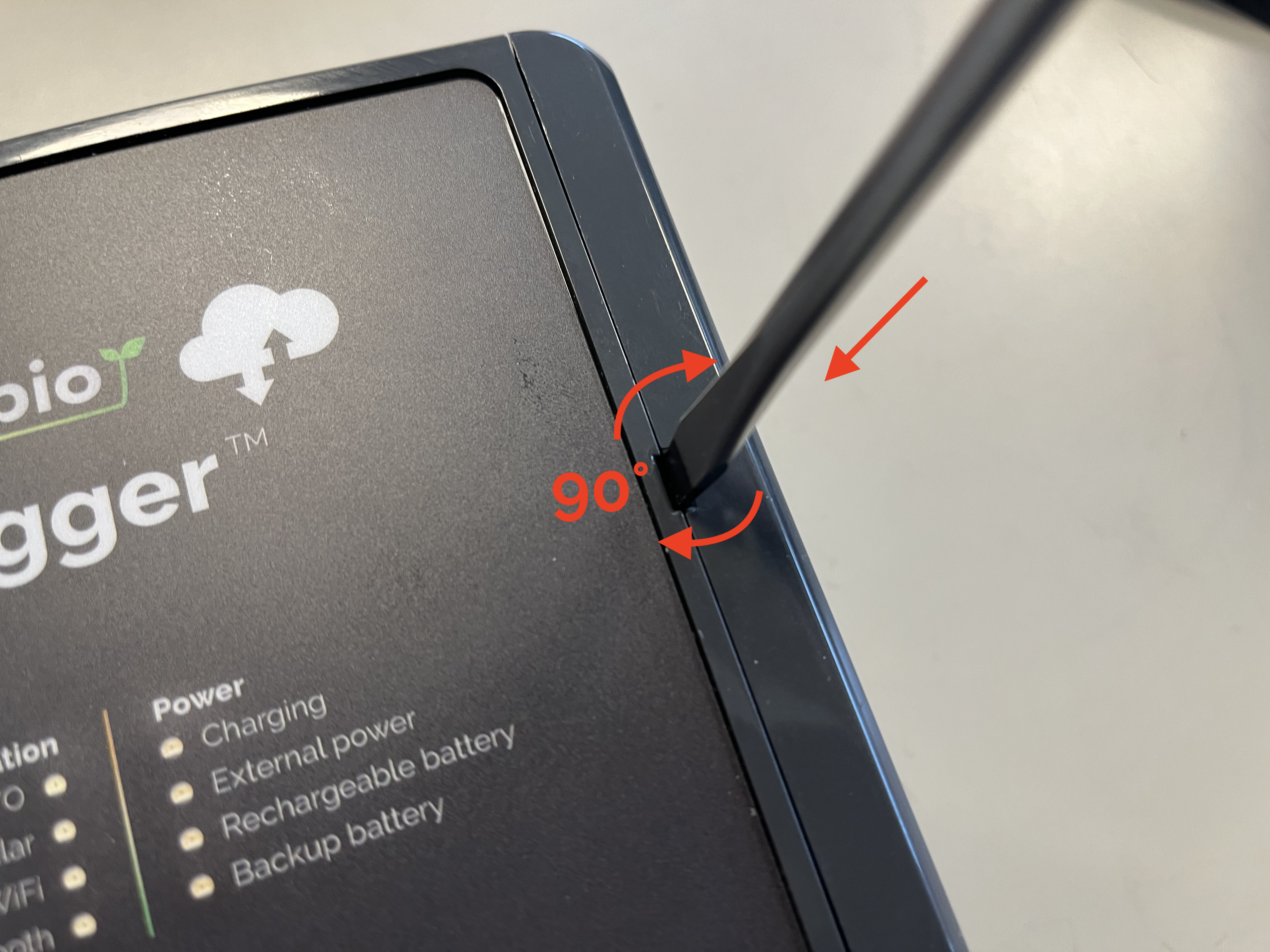

- Twist the screwdriver 90° while pressing down gently. The hinge of the lid should pop up in an intermediate position.

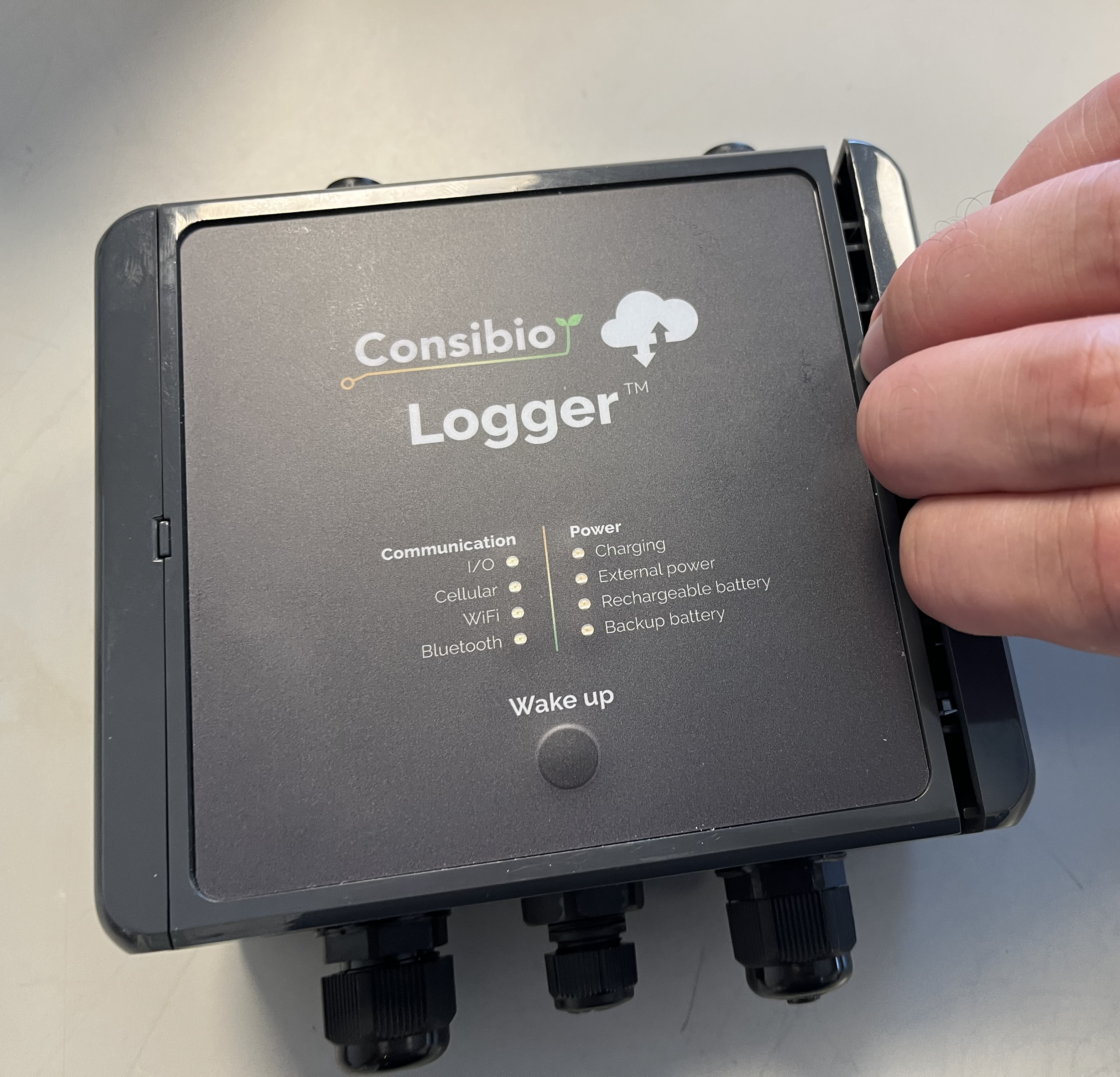

- Open the hinge the rest of the way with you hand.

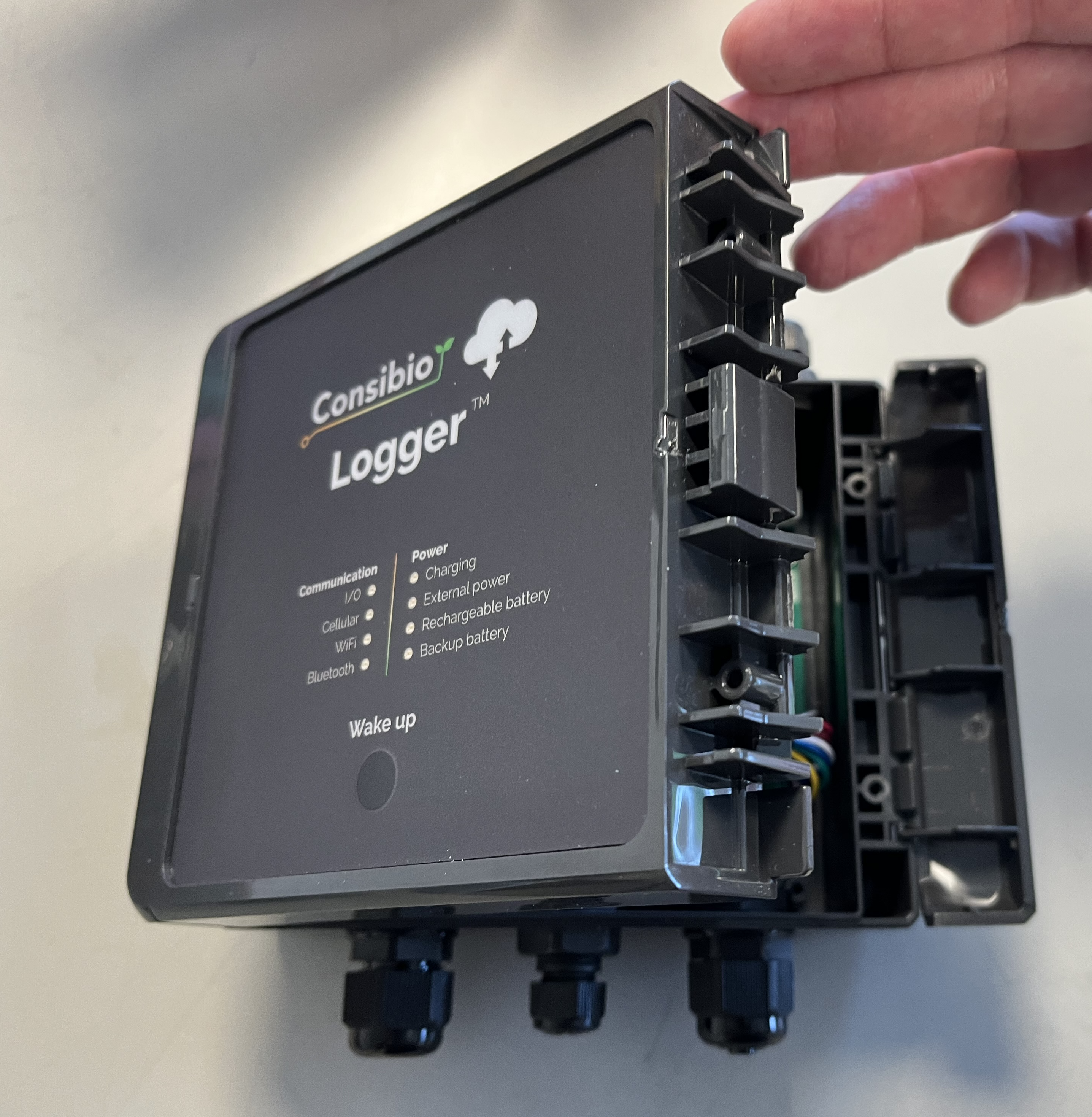

- The hinged lid can now gently be opened.
