Allows direct, low power sampling of a strain gauge for force and weight measurements.
Wiring

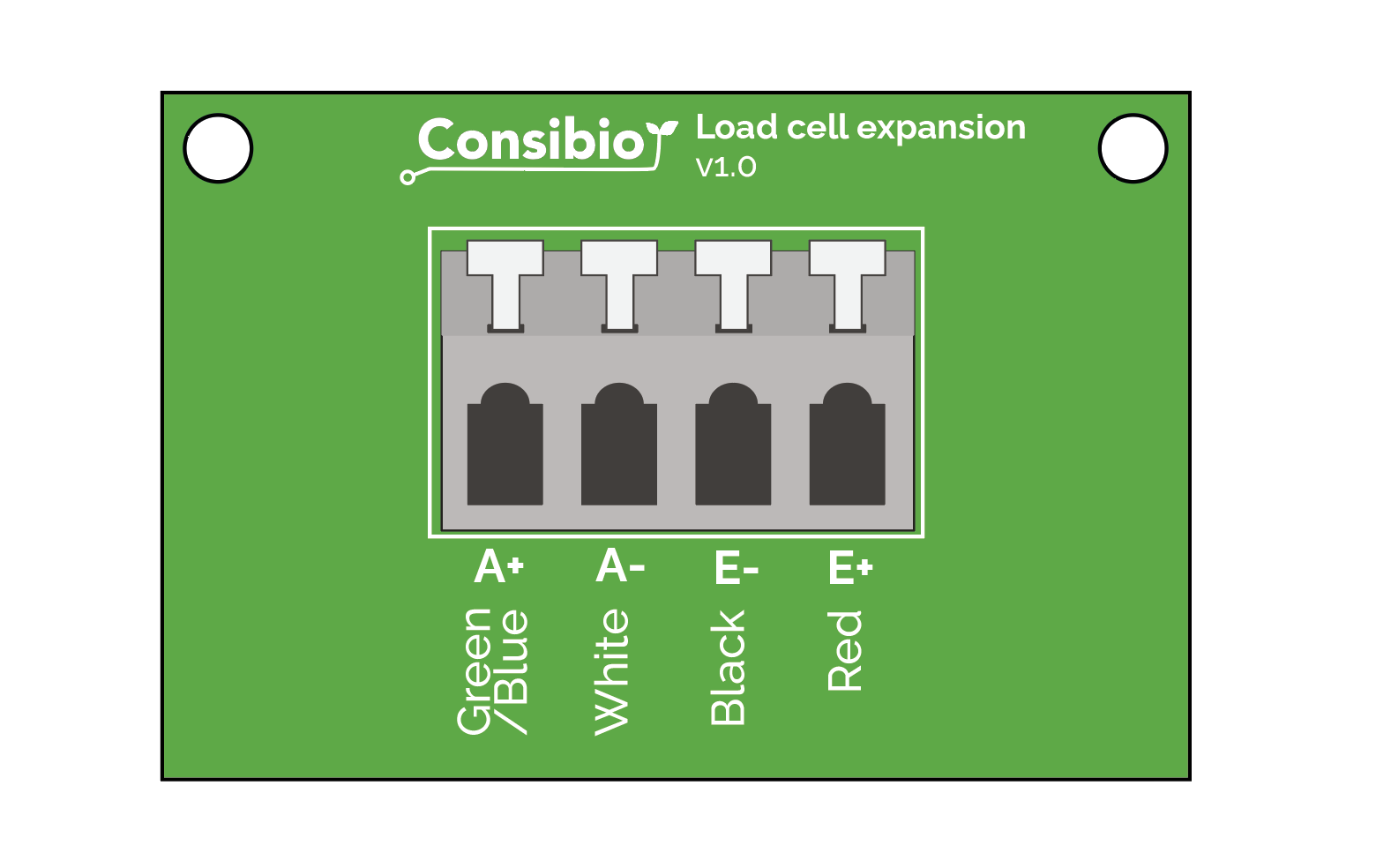

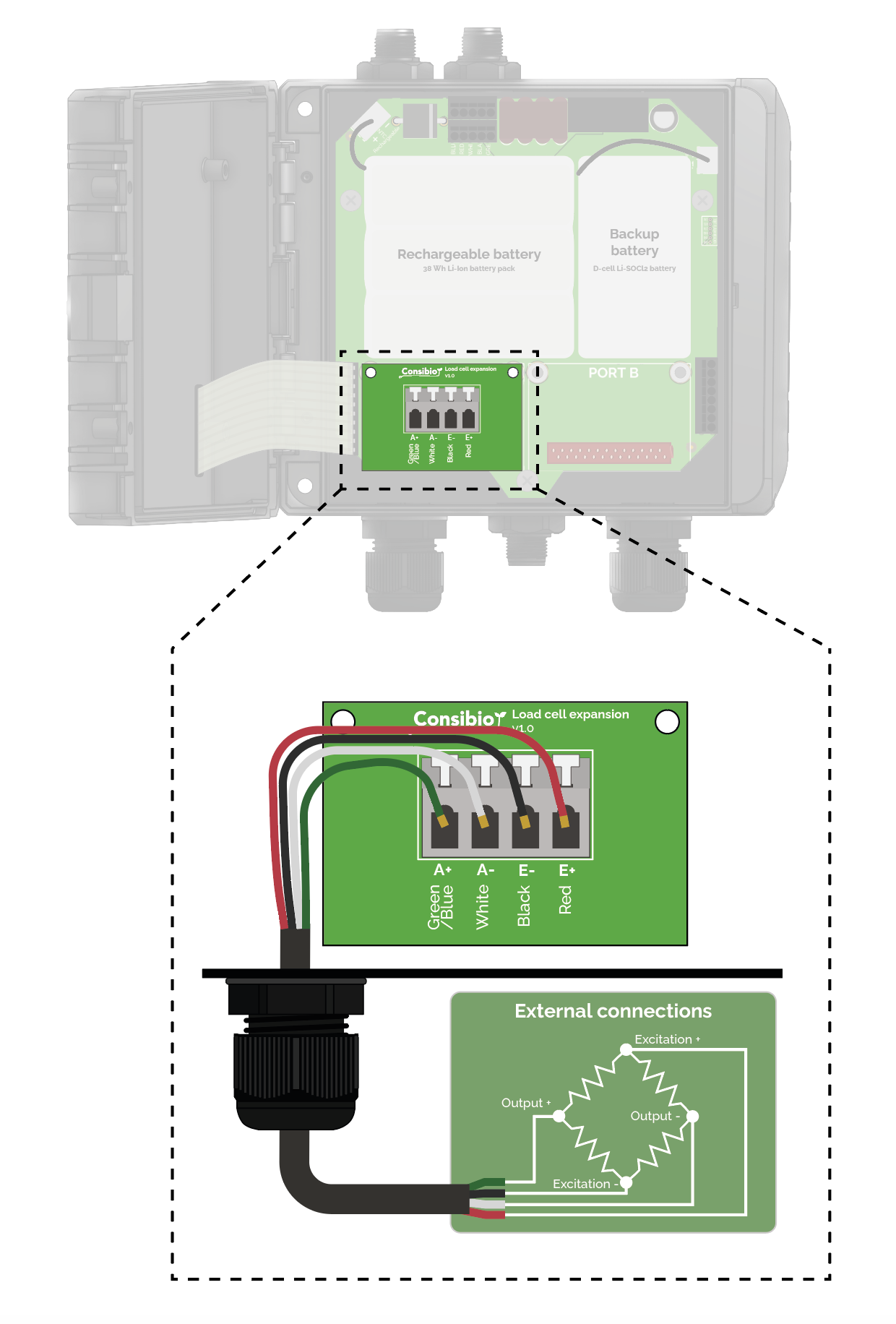

Plug the 4 wires of a load cell directly into the terminals of the expansion. The wiring shown under "External connections" indicates the wheatstone bridge usually embedded directly in the load cell.
