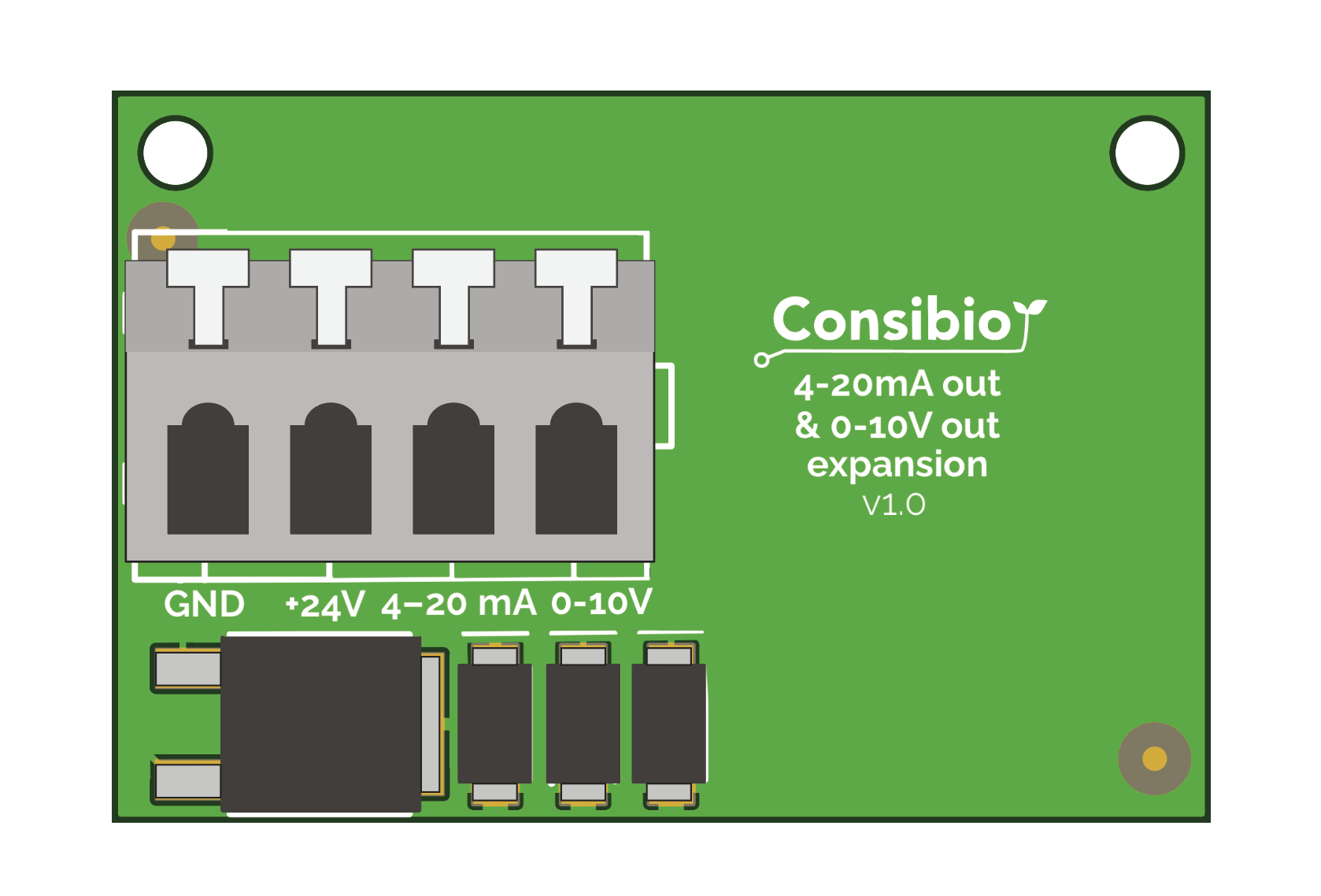

An expansion board for Consibio Logger v3, that enables the Logger to supply two separate variable analog outputs to external systems (such as PLCs) or for direct actuator control:
0-10V: Variable 0-10V output. The output is high impedance and cannot be used to power anything but only used as a signal.
4-20mA: Variable current loop output up to 20mA. The output is active and is supplied by an internal 24VDC supply

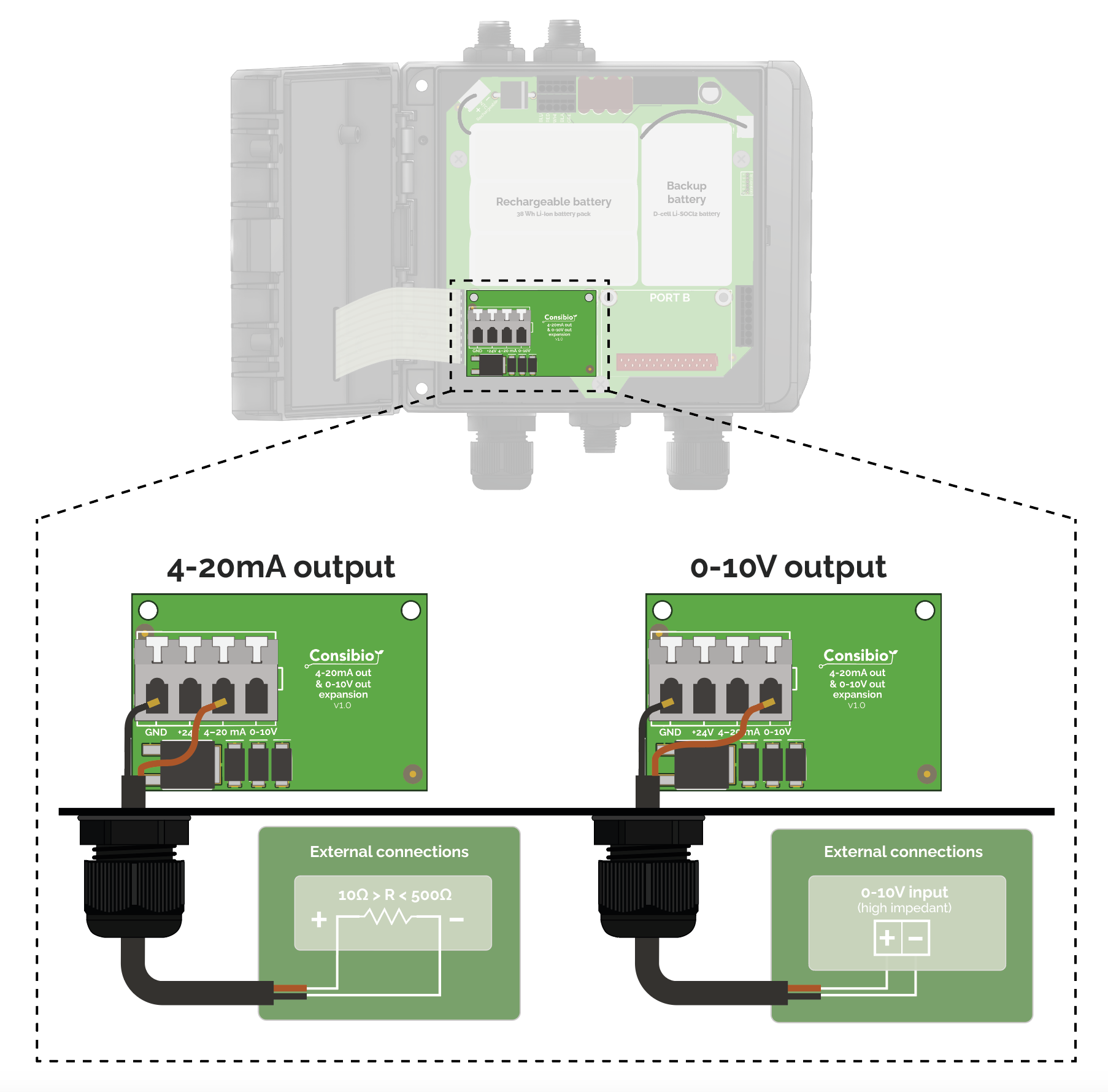

Installation and wiring
