Amphenol Telaire 3032 is an industrial carbon dioxide (CO2) sensor, that can be used to measure the relative carbon dioxide in air quality, fermentation and livestock production applications.

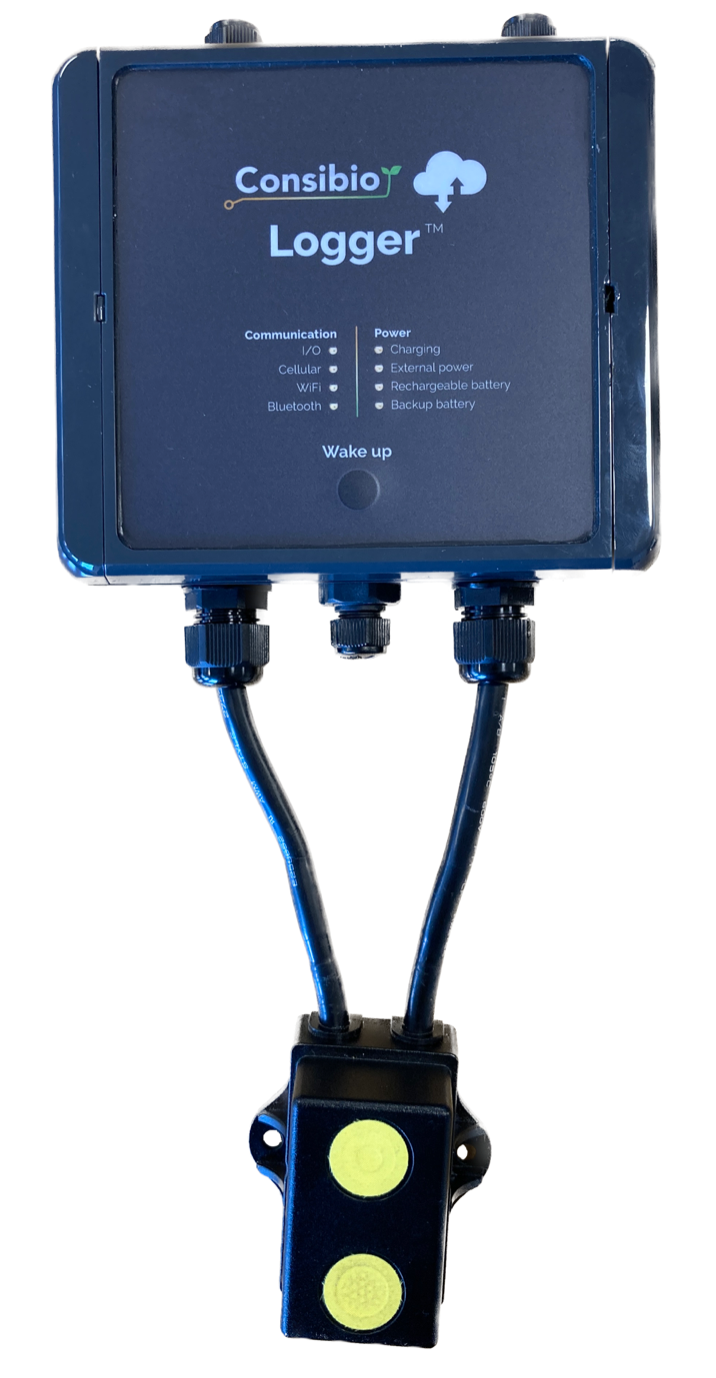

Together with the Consibio Logger, you can measure CO2 in real-time to provide valuable insights for:
- Environmental Monitoring: Provides real-time monitoring of carbon dioxide (CO2) levels, crucial for assessing indoor air quality and environmental conditions.
- Process Optimization: Enables optimization of industrial processes by monitoring CO2 emissions and identifying opportunities for energy efficiency and emissions reduction.
- Research Insights: Provides valuable data for studying the impact of CO2 levels on livestock health, productivity, and environmental sustainability, facilitating research and development in various fields.
Wiring of Sensor and Logger
Items needed
- 1 x Logger
- 1 x 4-20 mA v2.1 Expansion Board
- 1 x Amphenol Telaire 3032
Connecting a Amphenol Telaire 3032 sensor via. 4-20 mA
To integrate the Amphenol Telaire 3032 sensor with the Consibio Logger via 4-20 mA, utilize the 4-20 mA Expansion Board and follow these connections:
- #1 wire to 24V
- #2 wire to 4-20 mA IN1
- #3 wire to GND
- #4 wire to GND

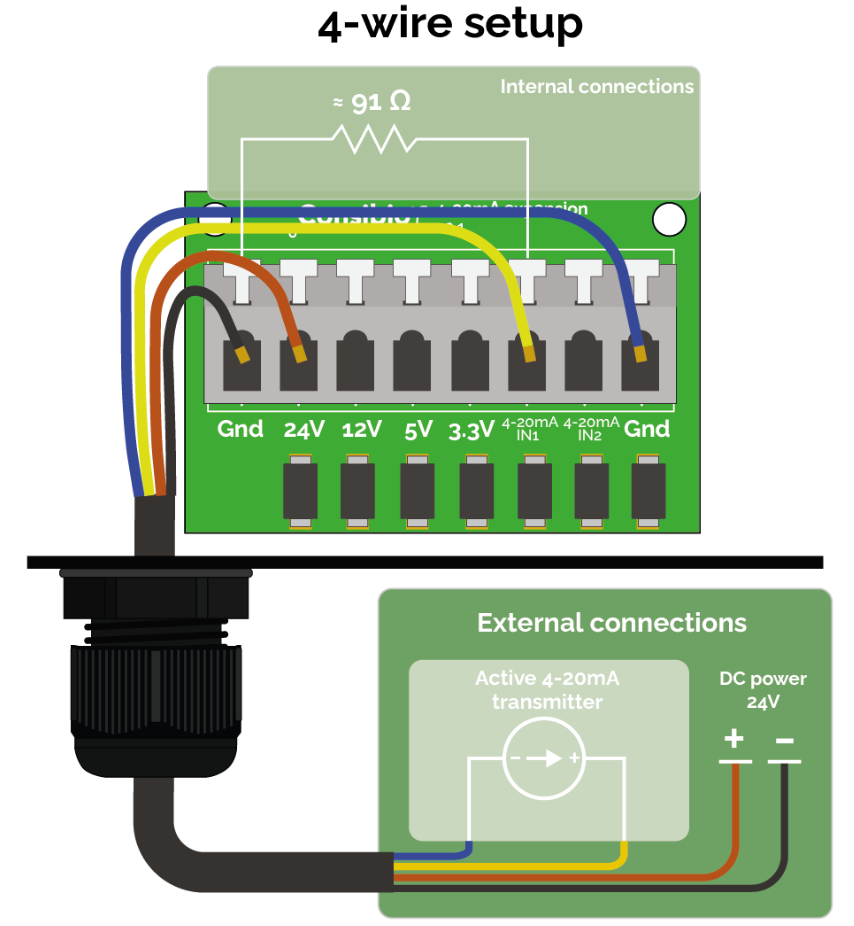

This configuration leverages the Logger's compatibility with the 4-20 mA protocol and the versatility of its 4-20 mA Expansion Board, enabling seamless integration with industry-standard communication protocols for efficient data acquisition and monitoring. Below is an example of a 4-wire setup, similar to the one used in this guide:
Consibio Cloud Configuration Checklist
Follow the checklist to setup the cloud configuration if you are new to Consibio Cloud:
- Claim Device Into Project
- Add Sensor Channel (4-20 mA)
- Configure Max. Offline and Measurement Interval
- Setup Dashboard
✅ Claim Device Into Project
✅ Add Sensor Channel (w. 4-20 mA signal example)
✅ Configure Max. Offline and Measurement Interval
✅ Setup Dashboard
Disclaimer
When performing sensor-electrical wiring, always read and follow the sensor manufacturers latest instructions and safety guidelines. This guide is a suggestion based on the available information at the date of writing this guide.
