Customizing Your Dashboard: Personalize Your Experience
In Consibio Cloud, you have the freedom to tailor the Dashboard to your unique preferences and needs. With an array of customization options, you can effortlessly optimize the layout, data visualization, and colors to create a personalized and efficient Dashboard. Here's a comprehensive guide on how to change the setup of your Dashboard:
- Adding Widgets for Complete Personalization
- Grouping Elements for Better Overview
- Adding or Removing Data in the Graph Window
- Editing Element Colors
- Editing Element Names
- Comprehensive Editing Options
1. Adding Widgets for Complete Personalization:

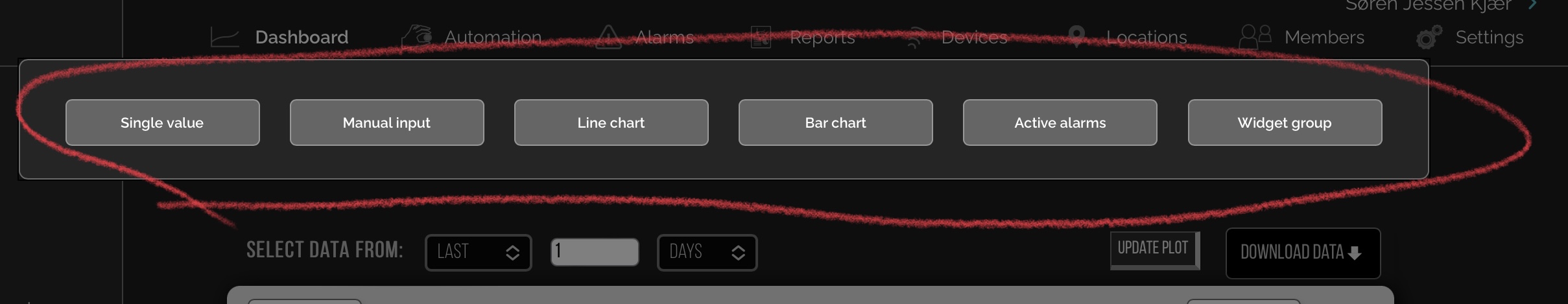

- Explore the "Add Widget" option by right clicking in the dashboard. This will enhance your Dashboard with a wide range of widgets.
- Widgets allow you to incorporate additional information, such as data from new sensors, bar charts, integrations and so on.
- By adding widgets, you can create a truly personalized Dashboard that provides a holistic view of all relevant information at a glance.

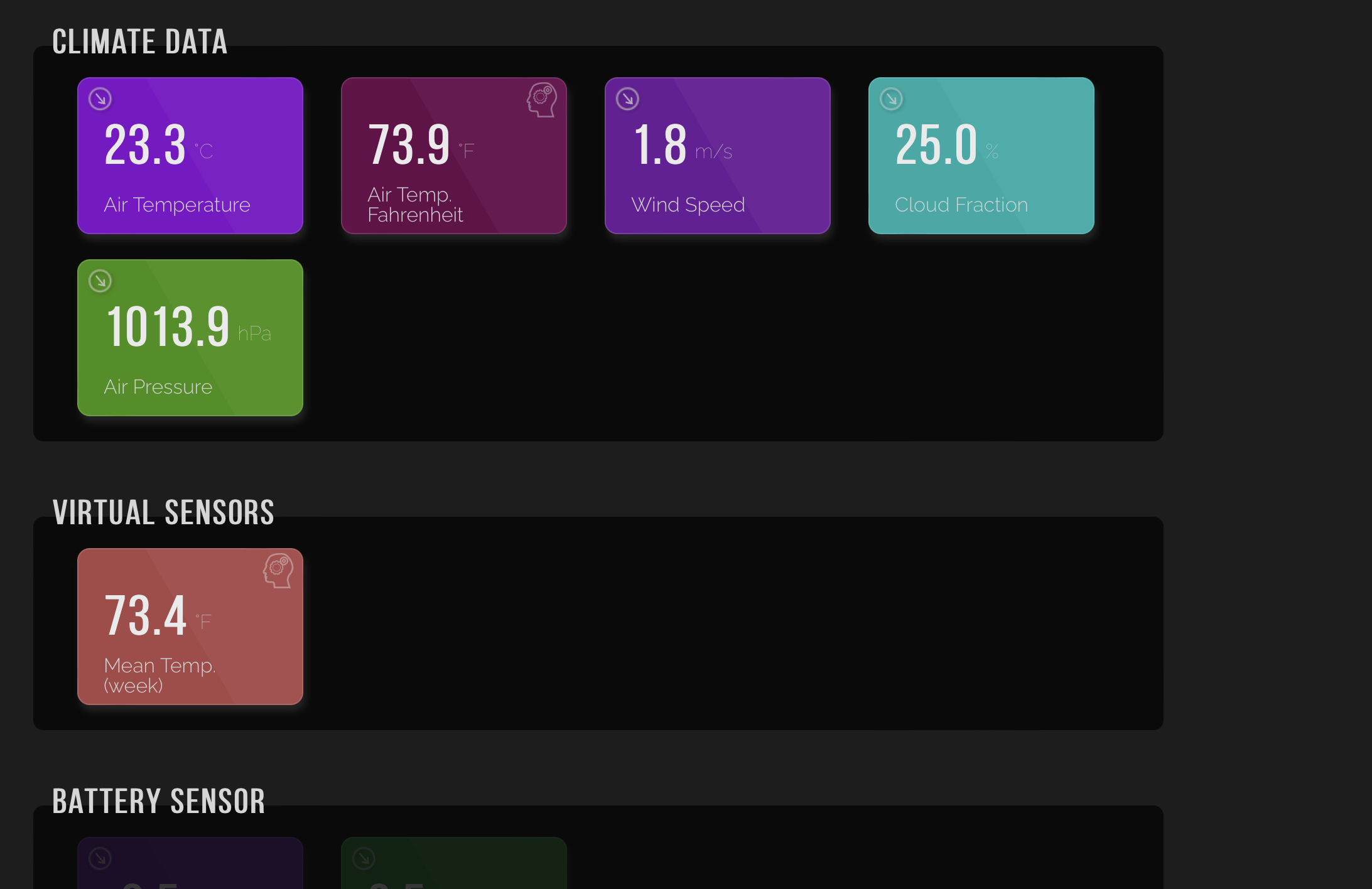

2. Grouping Elements for Better Overview:
- Right-click in the dashboard to access the widget menu.
- Select "Group" to create a grouping of specific Elements on your Dashboard.
- This allows you to drag-and-drop organize related elements together, providing a clearer and more intuitive overview and by naming the groups accoringly.
3. Adding or Removing Data in the Graph Window:

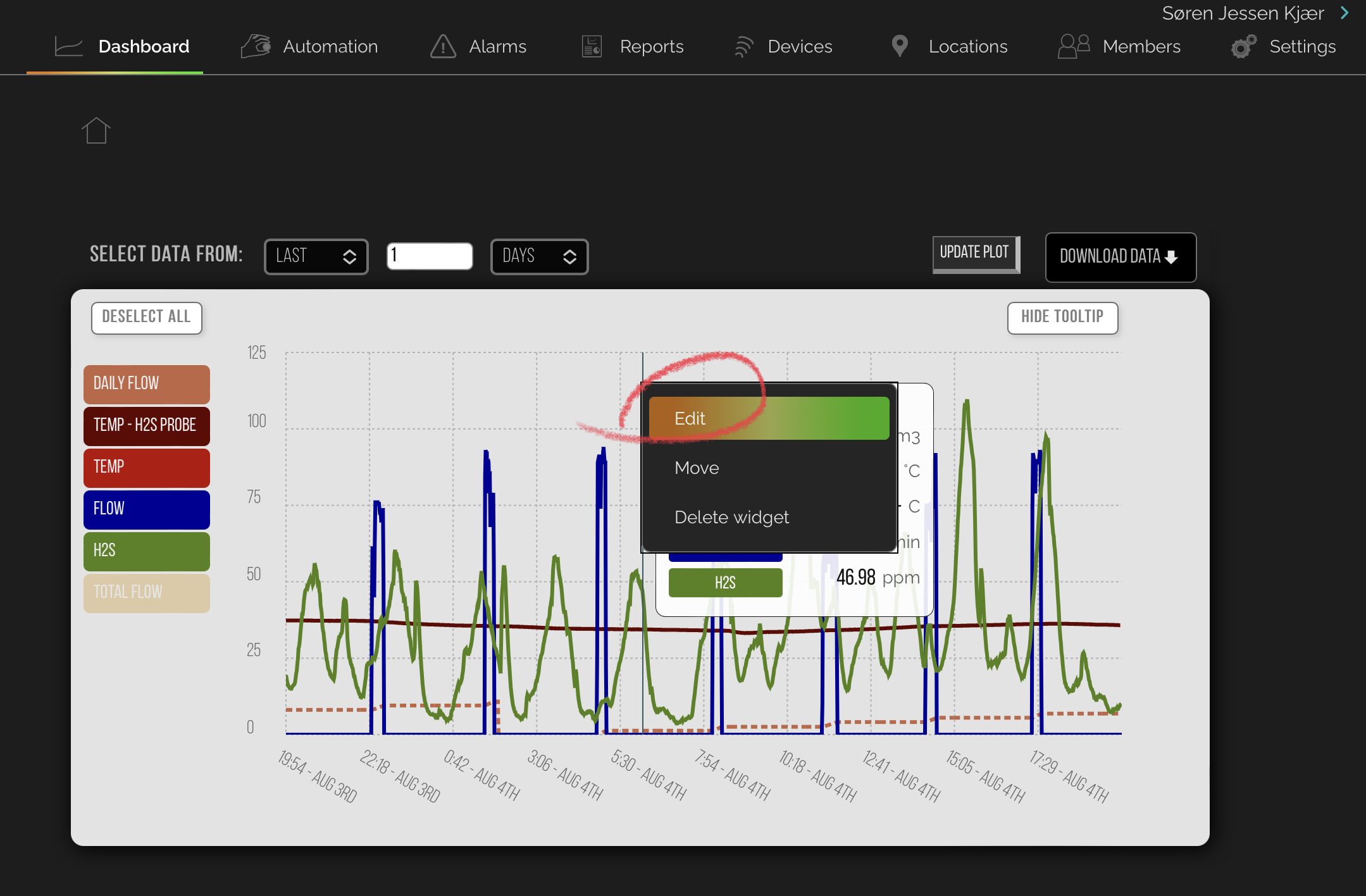

- In the line chart section of the Dashboard, right-click to open the edit-menu.

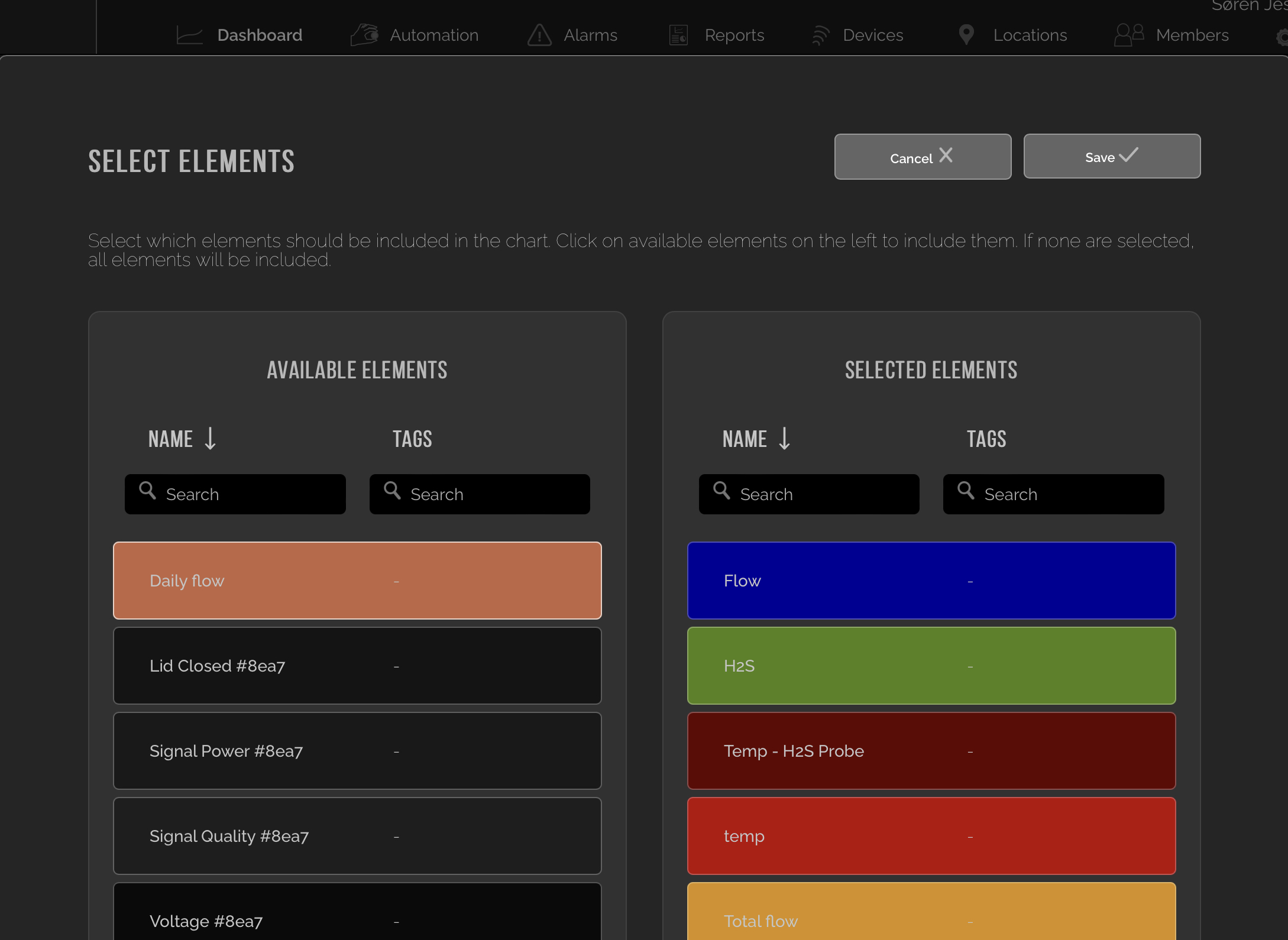

- Uncheck the data you wish to remove and check the ones you want to add to customize the graph to your liking.
5. Editing Element Colors:
- To change the color of a specific Element, click on the Element to access its settings.

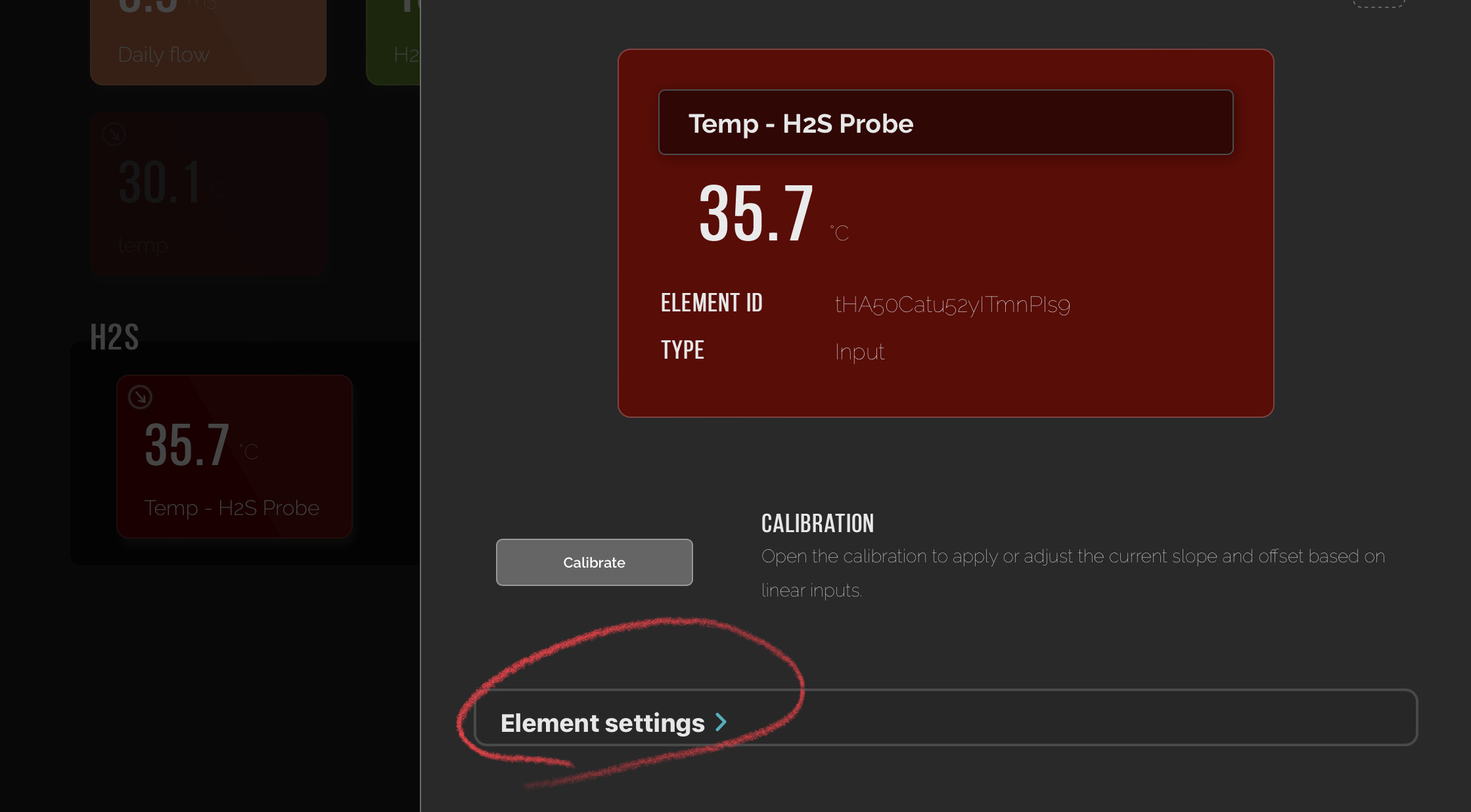

- Navigate to the "Element Settings" section.

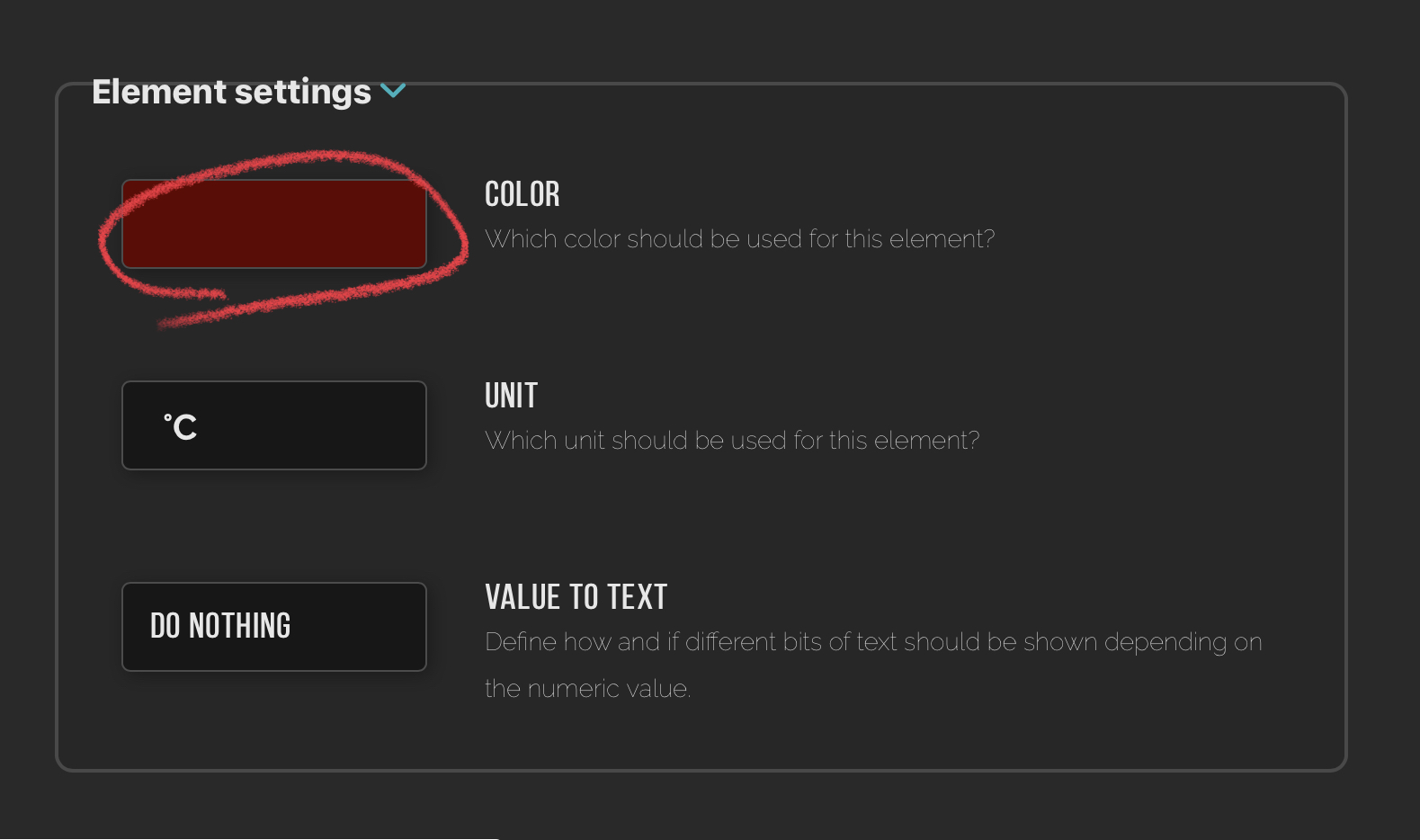

- Press the “color button” and choose the desired color from the color palette. The ability to customize colors enhances visual clarity and makes it easier to distinguish between different Elements.
6. Editing Element Names:
- Click on an Element tile to select it.

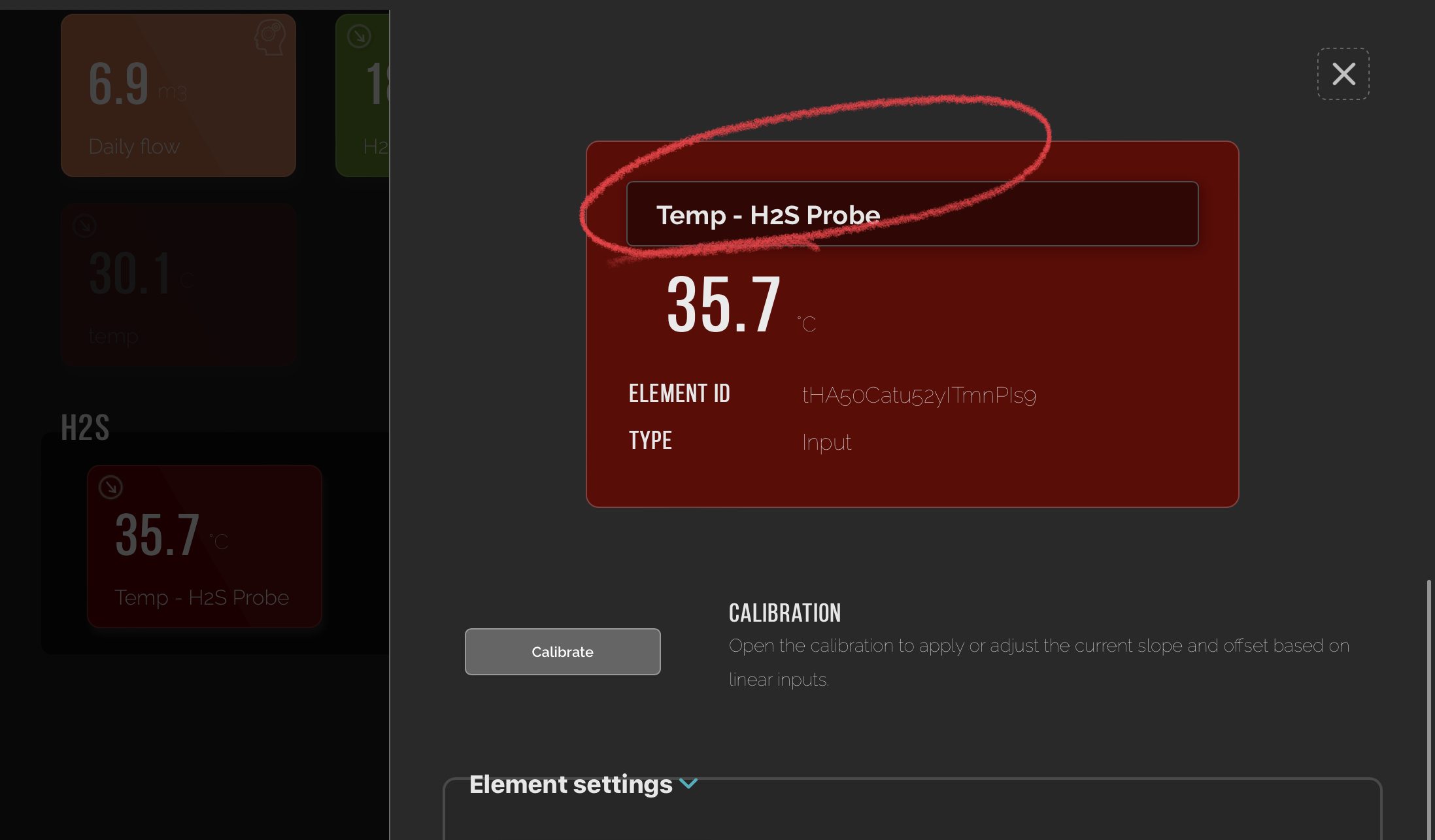

- Click on the Element name to edit it directly in place.
- Rewrite the name to give a more descriptive label that fits your project
7. Comprehensive Editing Options:
- The Dashboard in Consibio Cloud allows you to edit virtually anything to match your preferences and requirements.
- From colors and data visualization to layout and naming, you have complete control over the setup.
- If you require another feature for your specific purpose we urge you to contact: support@consibio.com.
By utilizing these powerful customization features, including adding widgets, you can create a Dashboard that reflects your specific project needs, enhances productivity, and provides a highly tailored IoT experience. The ability to modify the Dashboard setup ensures a seamless and user-centric approach to managing your IoT data and projects in Consibio Cloud.
