This is a guide for using the 1-click configuration in the Consibio Cloud to easily configure Consibio Sensors and Products.
1-click: Groundwater Logger
- Start by pressing the 1-click-config symbol in the top right corner, next to the question mark
- Inside the menu, you should see the option to press Groundwater Logger in the first submenu Configuration.

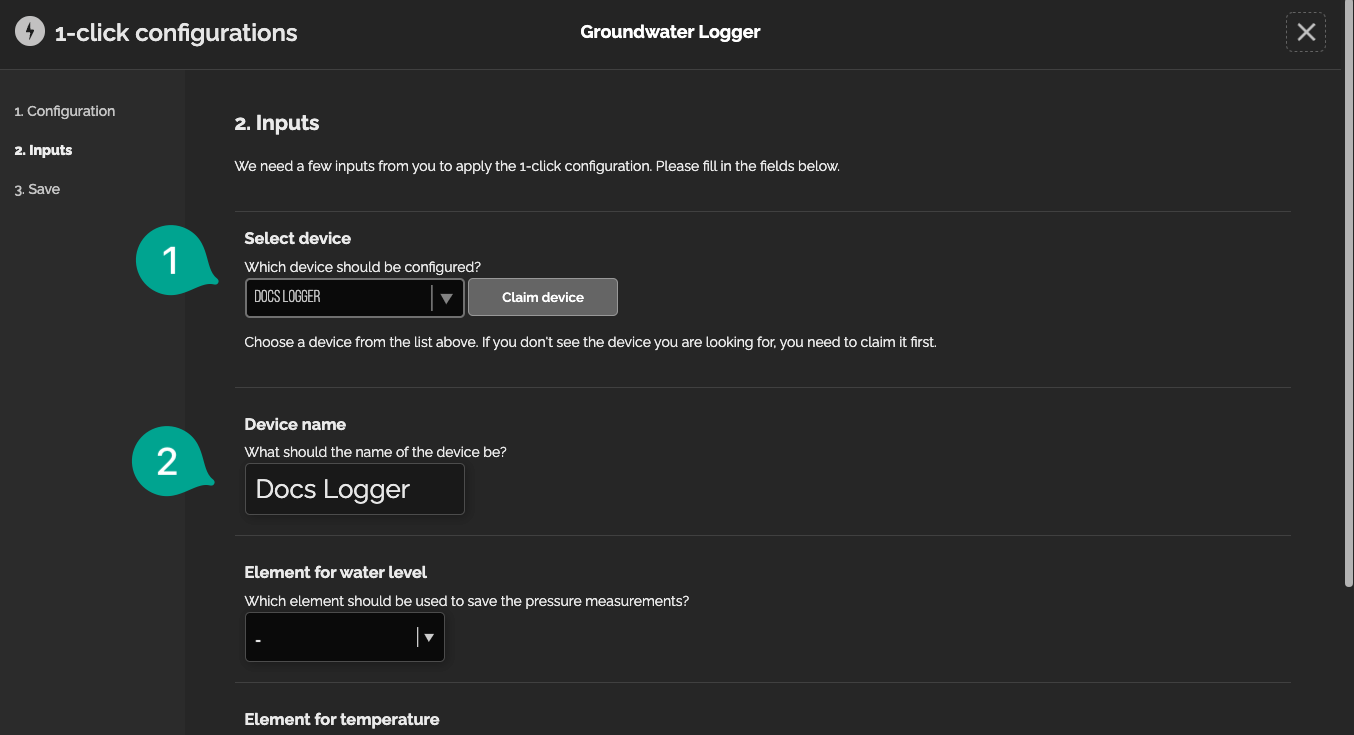

- In the second submenu, "Inputs", a few user inputs are needed to configure the device and the elements that are going to be created.
- Claim the desired device that you want to setup, or use the dropdown menu to select a device already existing in the project
- Enter a Device Name for the device
- After selecting and naming the device, the elements that are going to receive the data must be specified. Here you have the option to both select a previous one or create a new element

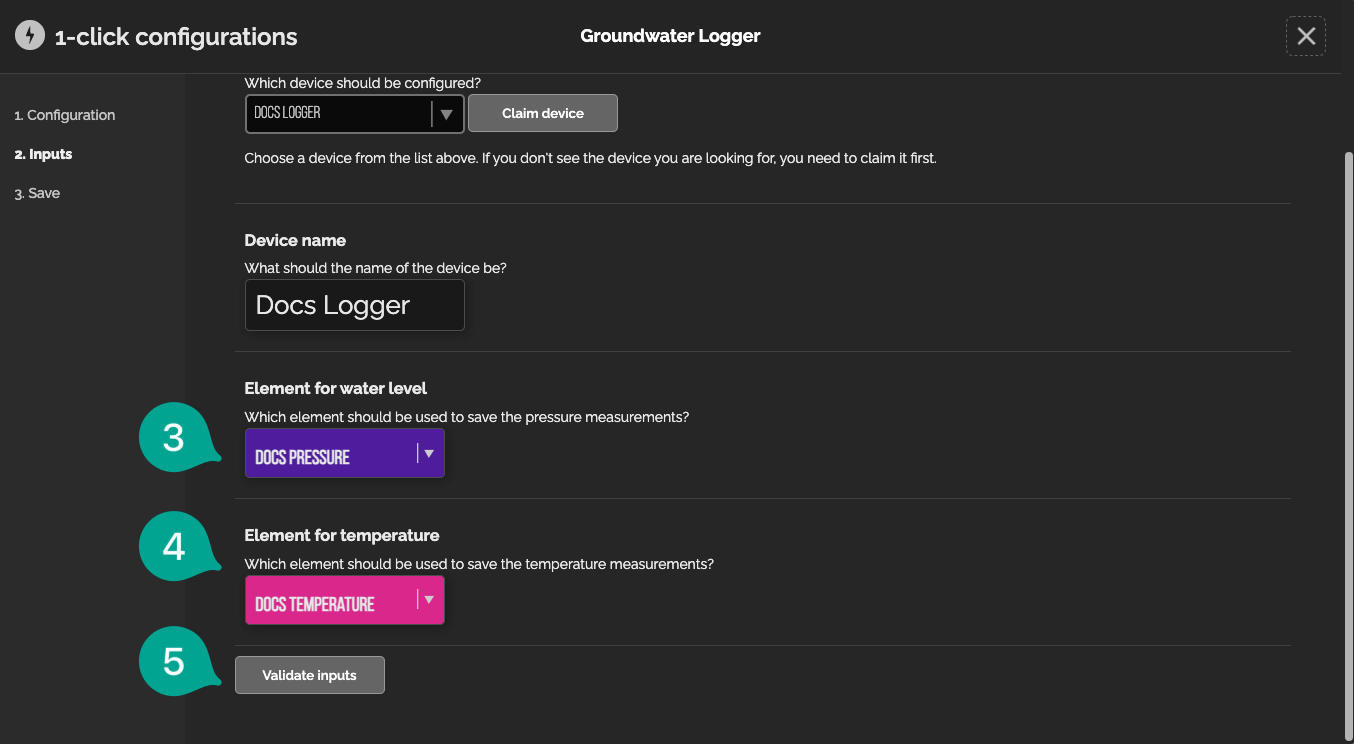

- Select an element for water level
- Select an element for temperature
- Finally, press the Validate Inputs to move onto the final submenu "Save"

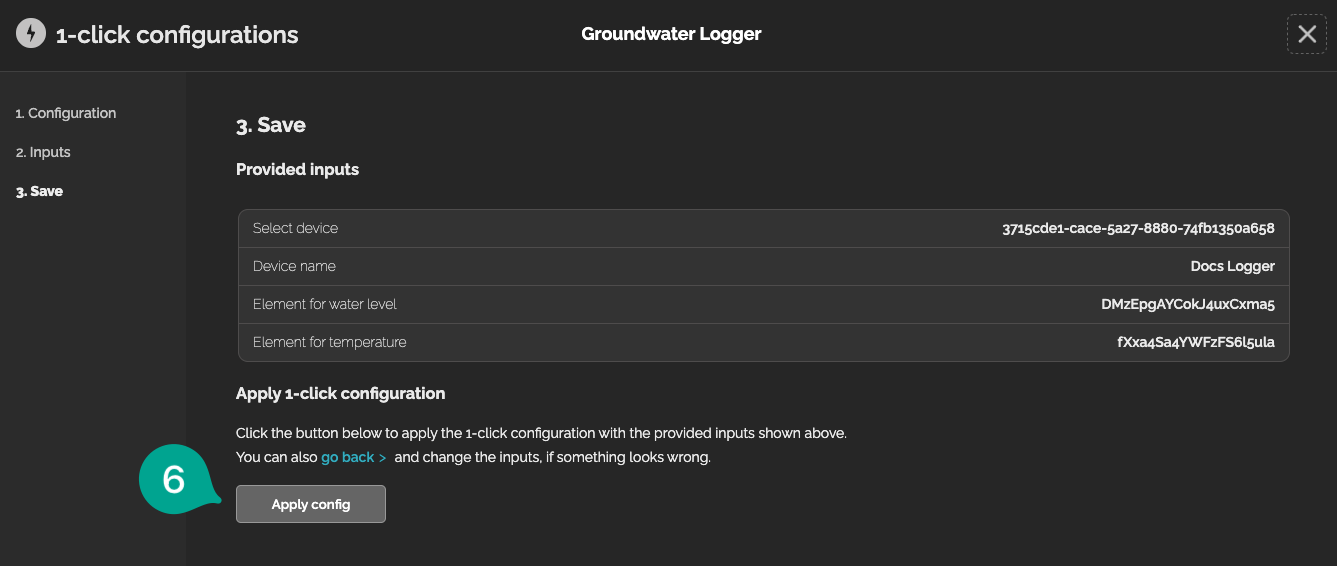

- In the Save submenu, please ensure that device name and information is correct.
- If everything is as expected, press the "Apply config" button
- After a short time, you will be greeted by a message that says your config was applied successfully and that you may close the window.
You've now successfully used the 1-click configuration.

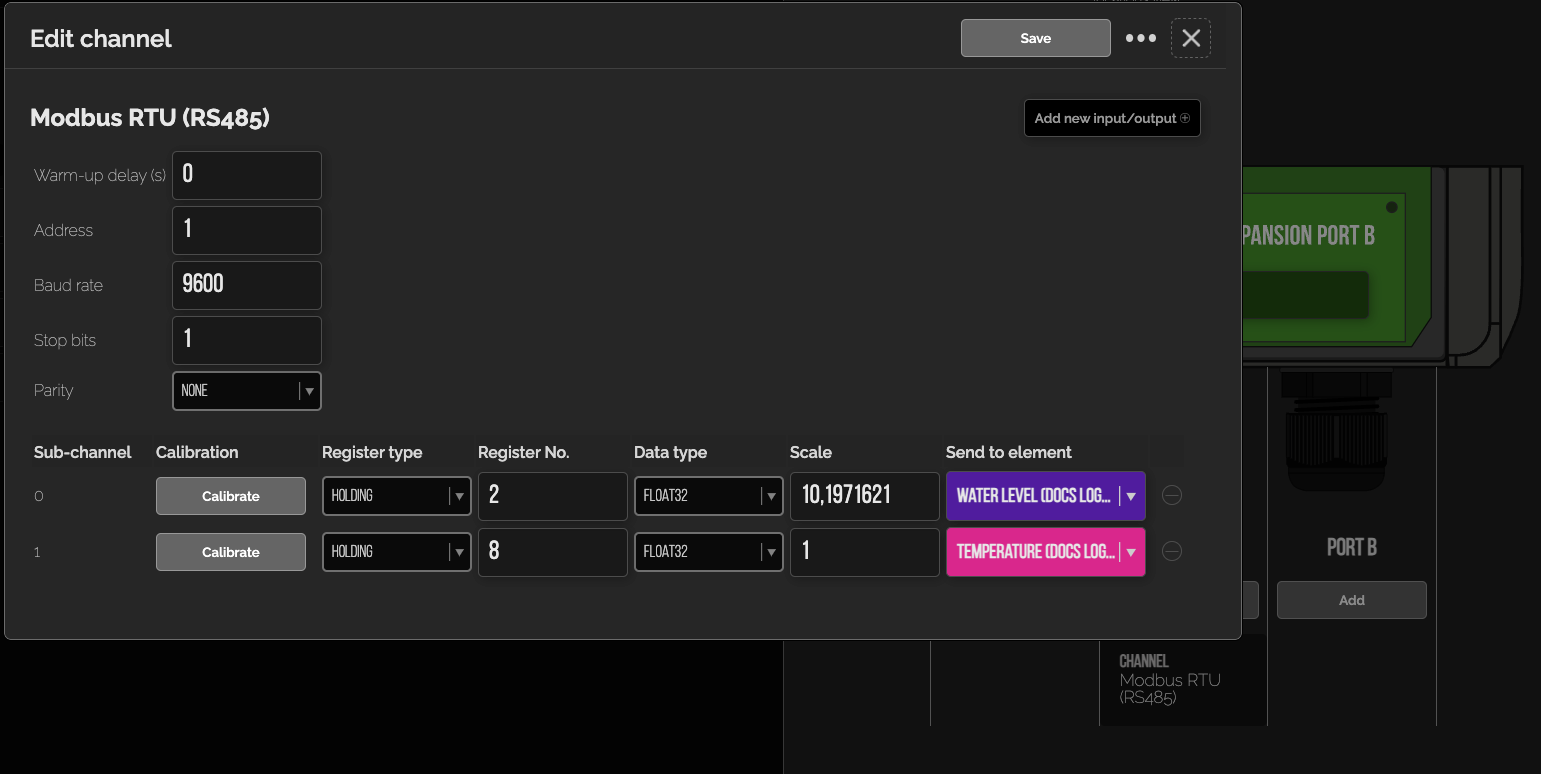

You can confirm this by going to the Devices tab, click on your configured device and look for a ModBus RTU (RS485) Channel with the corresponding water level and temperature elements configured (see image below)
