Ohaus Ranger 7000 is an industrial scale, that can be used to measure the weight of samples for industrial research and laboratories.
Together with the Consibio Logger, you can measure weight in real-time to provide valuable insights for:
- Quality Control: Facilitates quality control processes by verifying product weights and ensuring compliance with specifications during research and development stages, leading to improved product quality and consistency.
- Versatility: Offers a wide range of weighing capacities and functions, accommodating diverse research needs from small-scale laboratory experiments to larger production prototypes.
- Efficiency: Streamlines research processes by quickly and accurately measuring sample weights, saving time and enhancing productivity in experimental workflows.
Wiring of Sensor and Logger
Items needed
- 1 x Logger
- 1 x RS232 Expansion Board v1.0
- 1 x OHaus Ranger 7000
Connecting a OHaus Ranger 7000 via. Serial UART Communication (RS232)

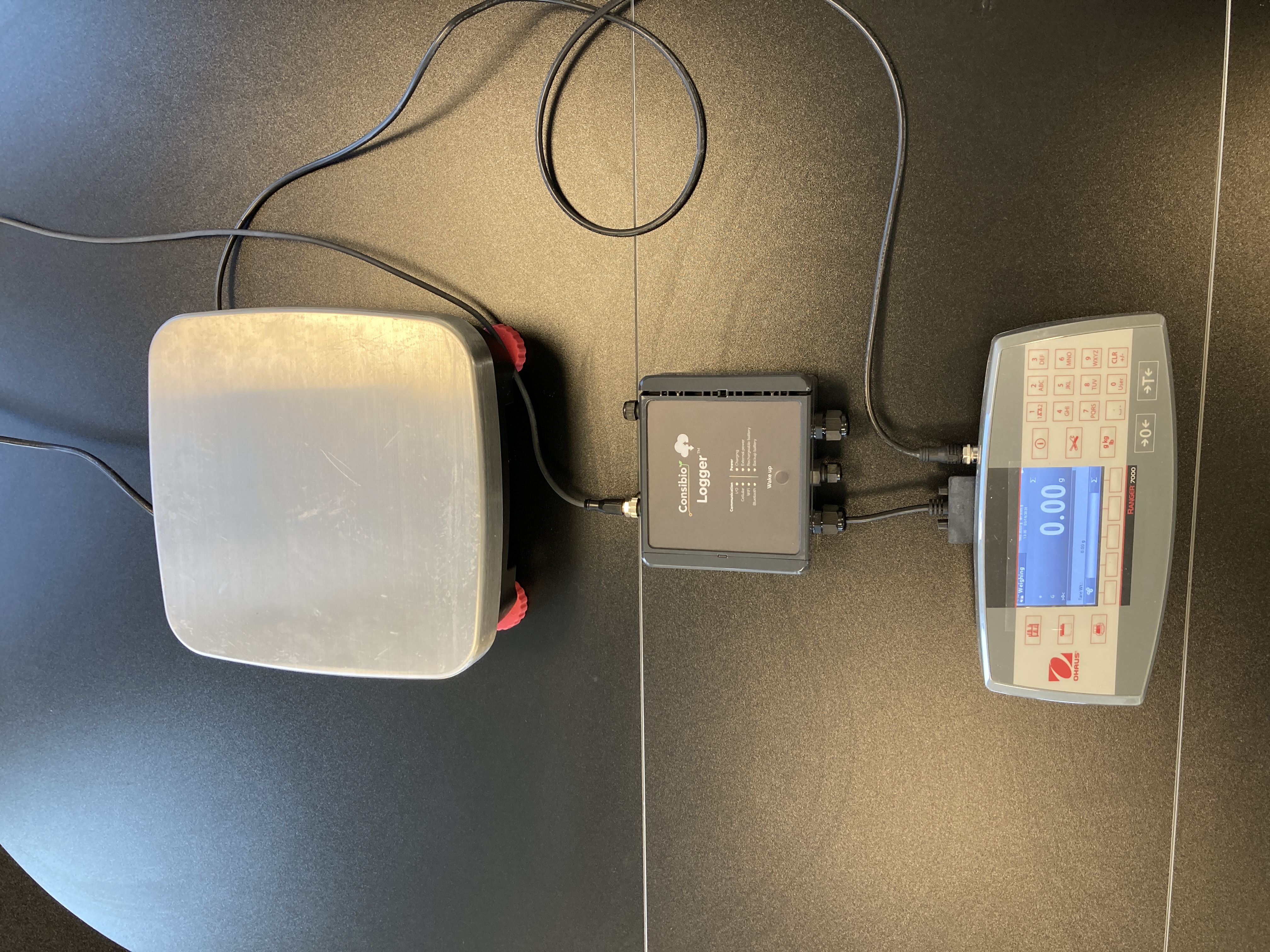

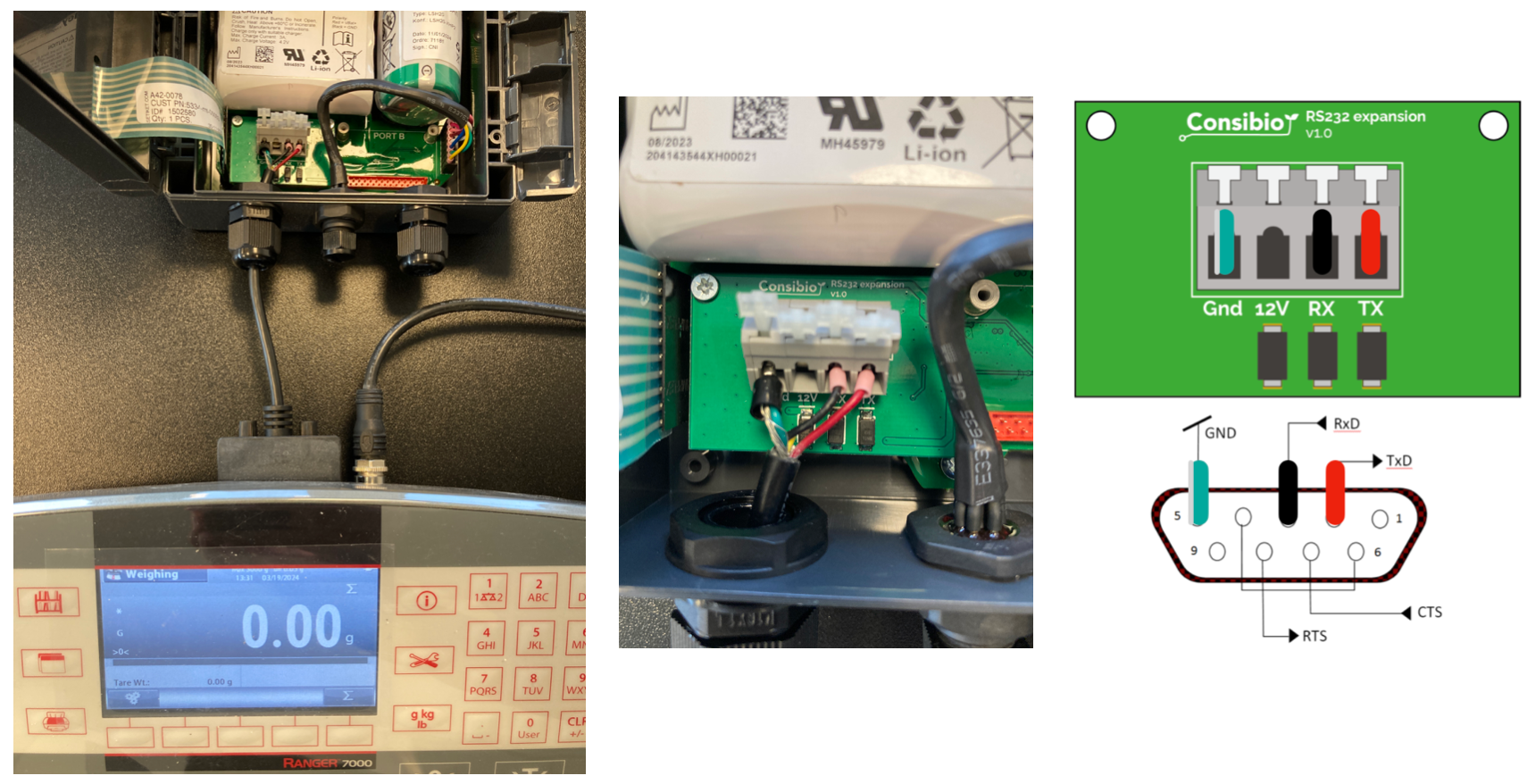

To integrate the OHaus Ranger 7000 weight with the Consibio Logger via Serial UART (RS232), utilize the RS232 Expansion Board and follow these connections:
- Teal and Shield wire to GND
- Black wire to RX
- Red wire to TX
This configuration leverages the Logger's compatibility with the Serial UART Communication Protocol and the versatility of its RS232 Expansion Board, enabling seamless integration with industry-standard communication protocols for efficient data acquisition and monitoring.
Consibio Cloud Configuration Checklist
Follow the checklist to setup the cloud configuration if you are new to Consibio Cloud:
- Claim Device Into Project
- Add Sensor Channel (4-20 mA example)
- Configure Max. Offline and Measurement Interval
- Setup Dashboard
✅ Claim Device Into Project
✅ Add Sensor Channel (4-20 mA example)
✅ Configure Max. Offline and Measurement Interval
✅ Setup Dashboard
Disclaimer
When performing sensor-electrical wiring, always read and follow the sensor manufacturers latest instructions and safety guidelines. This guide is a suggestion based on the available information at the date of writing this guide.
